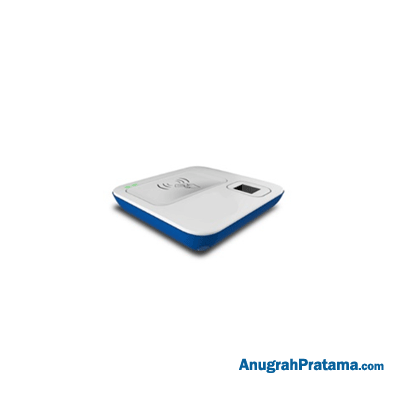

ABAKA Seri D Smart Card reader Fingerprint Scanner

Deskripsi

Anugrahpratama.com Jual ABAKA Seri D Smart Card reader Fingerprint Scanner

OS Supported:

• Windows 7
• Windows 8
• Windows 10

Spesifikasi:

• Contactless: Standards ISO/IEC 14443 Type A and B, MIFARE series
• Frequency 13.56MHz 7KHz
• Baud rate 106,212,424,848 kbps
• Operating Field 1.5 A/m (rms) – 7.5 A/m (rms)
• Read Distance Maximum 10 cm
• Contact : Standards ISO/IEC 7816
• Protocol T=0, T=1 andT=CL
• Secure Access Module 2x SAM slot
• Fingerprint Scanner
• Sensor Type Optical
• Sensor Area 15.2 mm x 20.3 mm {FAP 20)
• Sensor Standard 500 DPI
• Dimension 143mm(L) x 143mm(W) x 28mm(H)
• Weight 189 gr
• Fingerprint module supports FBI IQS PIV (Personal Identification Verification)
• ISO/IEC 19794-2 and NIST standard
• Optical sensor resolution 500 dpi
• Smart card reader module supports ISO/IEC 14443
• Secure access module supports ISO/IEC 7816 standard Support dual-way authentication between Secure Access Module and smart card
• 1.5 A/m (rms) – 7.5 A/m (rms)

Part Number: IDRPWnDF1

Garansi produk: 1 Tahun
