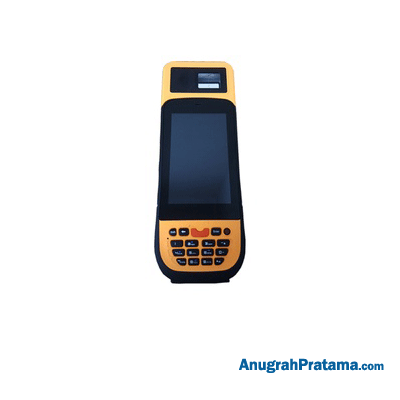

ABAKA Seri H Smart Card reader Fingerprint Scanner

Deskripsi

Anugrahpratama.com Jual ABAKA Seri H Smart Card reader Fingerprint Scanner

Spesifikasi:

• Konsumsi Daya 3.7 V
• 512mb RAM + 512mb ROM Storage: 8GB Micro SD/TF card expansion, max. 32GB
• Resolusi 480 X 800px with multi-point capacitive touch screen
• CPU: Tl AM3715 ARM cortex-A8 1 GHz
• GPU POWER: VR SGX Graphics Accelerator
• Storage: 8GB Micro SD/TF card expansion, max. 32GB
• Display: 4.3 Inch IPS res. 480 X 800px with with multi-point capacitive touch screen
• Operating System: Android 4.0.3
• Contactless: Standards ISO/IEC 14443 Type A and B
• MIFARE series
• Frequency: 13.56MHz 7KHz
• Baud rate: 106,212,424,848 kbps
• Operating Field: 1.5 A/m (rms) – 7.5 A/m (rms)
• Read Distance: Maximum 10 cm
• Contact: Standards ISO/IEC 7816
• Protocol: T=0, T=1 andT=CL
• Secure Access Module: 2x SAM slot
• Fingerprint Scanner
• Sensor Type: Optical
• Sensor Area: 15.2 mm x 20.3 mm {FAP 20)
• Sensor Standard: FBI IQS EFTS Compliant
• FIPS 201: PIV
• WLAN: GSM band 850/900/1800/1900 MHz
• GPRS
• Wifi: WiFi (802.11 b/g/n)
• Bluetooth: Bluetooth 4.0
• GPS UBLOX 6010 (optional)
• Battery: Rechargeable li-ion battery 5200mAh 3.7V, 210-hours standby time Up to 8-hours working time 3-hours charging time
• Battery: Rechargeable li-ion battery 4500mAh 3.7V Up to 6-hours working time 2.5-hours charging time
• Fingerprint module supports FBI IQS PIV (Personal Identification Verification)
• ISO/IEC 19794-2 and NIST standard
• Optical sensor resolution 500 dpi
• Smart card reader module supports ISO/IEC 14443
• Secure access module supports ISO/IEC 7816 standardSupport dual-way authentication between Secure Access Module and smart card

Part Number: IDRPAD4F1

Garansi produk: 1 Tahun
