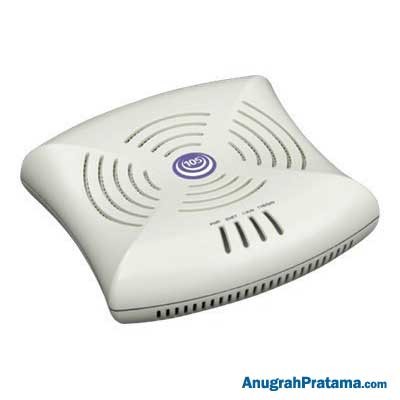

ALCATEL LUCENT OmniAccess AP105 Wireless Access Point (OAW-AP105)

Deskripsi

Anugrahpratama.com Jual ALCATEL LUCENT OmniAccess AP105 Wireless Access Point (OAW-AP105)

Spesifikasi:

Application
• High-performance 802.11n enterprise campus or branch office applications, indoor use, concurrent dual-band operation

Operating mode
• Multiservice concurrent 802.11a/n + b/g/n WLAN
• 802.11a/b/g/n air monitor
• Hybrid combination of WLAN/AM
• Remote AP
• Secure enterprise mesh
• Configurable to support 802.11n HT 20/40 channels or mixed-mode deployment 802.11a/b/g/n

Radios
• Dual-radio software configurable to support 2.4 GHz to 2.5 GHz + 5 GHz
• Both radios 802.11n-capable, implementing 2×2 MIMO with two spatial streams, providing up to 300 Mb/s per radio

Antenna
• 4 x integrated, omnidirectional antenna elements (supporting up to 2×2 MIMO with spatial diversity)
• Maximum antenna gain: 2.4 GHz / 2.5 dBi; 5.150 GHz – 5.875 GHz / 4.0 dBi

Wireless radio specifications
• AP type: 2×2 MIMO
• Supported radio technologies:
  – 802.11b: Direct-Sequence Spread-Spectrum (DSSS)
  – 802.11a/g/n: Orthogonal Frequency Division Multiplexing (OFDM)
  – 802.11n: 2×2 MIMO with two spatial streams
• Supported modulation types:
  – 802.11b: BPSK, QPSK, CCK
  – 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
• Transmit power: Configurable in increments of 0.5 dBm
• Maximum Ratio Combining (MRC) for improved receiver performance
• Association rates (Mb/s):
  – 802.11b: 1, 2, 5.5, 11
  – 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
  – 802.11n: MCS0 to MCS15 (6.5 Mb/s to 300
• 802.11n High-Throughput (HT) support: HT 20/40 Mb/s)
• 802.11n Packet Aggregation: A-MPDU, A-MSDU

Interfaces
• Network: 1 x 100/1000Base-T Ethernet (RJ-45), auto-sensing link speed and MDI/MDX
• Power: 1 x DC power connector
• Other: 1 x RJ-45 console interface

Power
• 48 V DC 802.3af PoE
• 12 V DC for external AC-supplied power (adapter sold separately)
• Maximum power consumption: 12.5 W

Garansi produk: 1 Tahun
