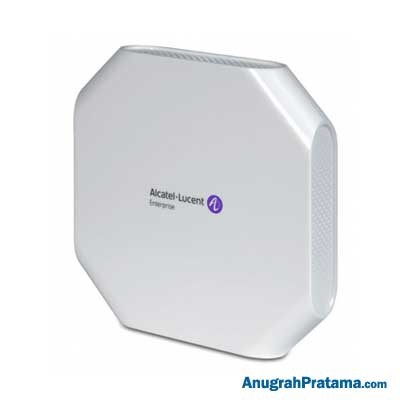

ALCATEL LUCENT OmniAccess Stellar AP1101 Wireless Access Point (OAW-AP1101-RW)

Deskripsi

Anugrahpratama.com Jual ALCATEL LUCENT OmniAccess Stellar AP1101 Wireless Access Point (OAW-AP1101-RW)

Spesifikasi:

Mounting
• Wall mount, ceiling tile and desktop

Power

• Maximum (worst case) power consumption:
  – 10 W (802.3at PoE or DC)
• Direct DC source:
  – 48 V DC nominal, +/- 5%
• Power over Ethernet (PoE):
  – 48 V DC (nominal) 802.3af/802.3at compliant source
  – When both power sources are available, DC power takes priority

Interfaces
• 1 10/100/1000 Mb/s full/halfduplex Ethernet (RJ-45)
• PoE-PD: 48 V DC (nominal) 802.3af or 802.3at PoE
• Security lock slot
• Reset button: Factory reset

Visual Indicators (Tri-color LEDs)
• For system and radio status:
  – Red flashing: System abnormal, link down
  – Red light: System startup
  – Red and blue rotate flashing: System running, OS upgrading
  – Blue light: System running, dual bands working
  – Green flashing: System running, no SSID created
  – Green light: System running, single band working
  – Red, blue and green rotate flashing: System running, use for location of an AP

Antenna
• Built-in 22:2, 3.4 dBi @ 2.4 GHz, 2.55 dBi @ 5 GHz

Capacity
• Up to 8 SSID per radio (total 16 SSID)
• Support for up to 255 associated client devices per AP

Radio specification
• DFA (Dynamic Frequency Adjustment) optimizes available channels and provides proper transmission power
• Short guard interval for 20-MHz, 40-MHz and 80-MHz channels
• Transmit beamforming (TxBF) for increased signal reliability and range

Garansi produk: 1 Tahun
