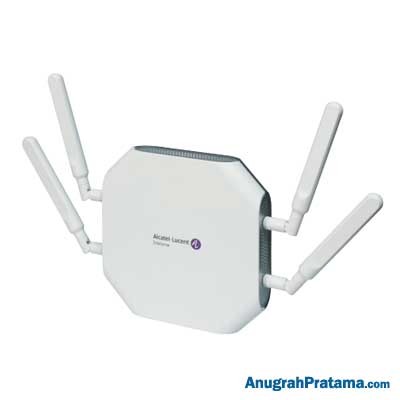

ALCATEL LUCENT OmniAccess Stellar AP1222 Access Point (OAW-AP1222-RW)

Deskripsi

Anugrahpratama.com Jual ALCATEL LUCENT OmniAccess Stellar AP1222 Access Point (OAW-AP1222-RW)

Spesifikasi:

Radio specification
• AP type: Indoor, dual radio, 5 GHz 802.11ac 4×4:4 MU-MIMO and 2.4 GHz 802.11n 2×2:2 MIMO
• 5 GHz: Four spatial stream single user (SU) MIMO for up to 1733 Mb/s wireless data rate to individual 4×4 VHT80 or 2×2 VHT160* client devices
• 5 GHz: Four spatial stream multi user (MU) MIMO for up to 1733 Mb/s wireless data rate to up to three MU-MIMO capable client devices simultaneously
• 2.4 GHz: Two spatial stream single user (SU) MIMO for up to 400 Mb/s wireless data rate to individual 2×2 VHT40 client devices (300 Mb/s for HT40 802.11n client devices)
• DFA (dynamic frequency adjustment) optimizes available channels and provides proper transmission power
• Short guard interval for 20 MHz, 40 MHz, 80 MHz and 160 MHz* channels
• Transmit beam forming (TxBF) for increased signal reliability and range
• 802.11n/ac packet aggregation: Aggregated Mac Protocol Data Unit (A-MPDU), Aggregated Mac Service Data Unit (A-MSDU)

Interfaces
• 1x 10/100/1000Base-T autosensing (RJ-45) port, Power over Ethernet (PoE)
• 1x USB 2.0 (Type A connector)
• 1x management console port (RJ-45)
• Reset button: Factory reset
• Kensington security slot
• AP1222: 4x RP-SMA antenna connectors

Antenna
• AP1222 External 22:2 @ 2.4 GHz, 4×4:4 @ 5 GHz

  – Four RP-SMA connectors for external dual band antennas

Capacity
• Up to 8 SSID per radio (total 16 SSID)
• Support for up to 512 associated client devices per AP

Power
• Maximum (worst case) power consumption:
  – <15.6 W (802.3at PoE or DC)
  – Excludes power consumed by external USB device; USB with 500mA load can add up to 2.9 W
  – Maximum power consumption in idle mode: 7.5 W
• Power over Ethernet (PoE):
  – 48 V DC (nominal) 802.3af/802.3at compliant source
  – Unrestricted functionality with 802.3at PoE
  – The USB port is disabled and the 5 GHz radio is restricted to 2*2:2 when the AP is powered by 802.3af PoE source

Garansi produk: 1 Tahun
