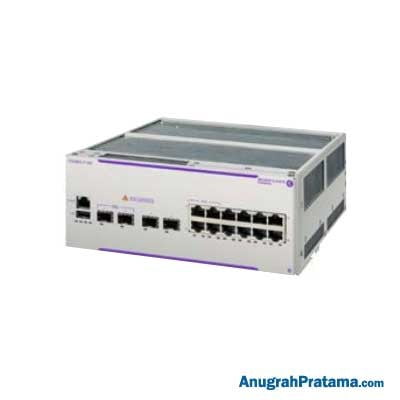

ALCATEL LUCENT OmniSwitch 6865 12-Port PoE+ Hardened Gigabit Ethernet Switch [OS6865-P16X-EU]

Deskripsi

Anugrahpratama.com Jual ALCATEL LUCENT OmniSwitch 6865 12-Port PoE+ Hardened Gigabit Ethernet Switch [OS6865-P16X-EU]

Spesifikasi:

• 12x RJ-45 10/100/1000 Base-T PoE+ ports out of which 4 are 75W HPoE ports
• 2x 1000 Base-X SFP ports
• 2x SFP+ (1G/10G) ports
• RS-232 Console (RJ45) and USB port

Product matrix
• File system flash: 2 GB
• RAM: 2GB
• Altitude: 13,000 ft
• Max raw fabric capacity: 224 Gb/s
• Switching capacity: 68 Gb/s
• 1588v2 Capable Ports: 16
• Maximum PoE Budget**: 300 W
• Power Consumption (idle)***: 30 W
• Power Consumption (full load)***: 45 W
• Heat Dissipation (BTU/hr)***: 102.3
• Maximum surge protection on
  ports****: 6 KV

Note:
** With 2 x AC or 2 x DC (48 V input) power supplies operating at -40 degree C to 60 degree C. Please refer to HW user’s guide for more information on PoE budget.
*** Power consumption measured at 120 VAC input. Full L2 traffic load measurement does not include PoE power consumption. Heat dissipation measured at idle: 1 watt = 3.41214 BTU/h
**** On copper ports

Garansi produk: 1 Tahun
