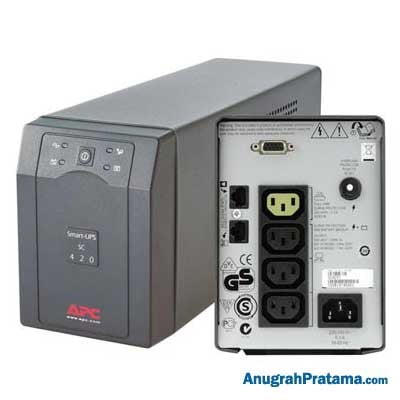

APC Smart-UPS SC 420VA 230V (SC420I)

Deskripsi

Anugrahpratama.com Jual APC Smart-UPS SC 420VA 230V (SC420I)

Spesifikasi:

Output

• • Output power capacity : 260Watts / 420VA
  • Max Configurable Power (Watts) : 260Watts / 420VA
  • Output Voltage Distortion : Less than 5% at full load
  • Output Frequency (sync to mains) : 47 – 53 Hz for 50 Hz nominal, 57 – 63 Hz for 60 Hz nominal
  • Topology : Line Interactive
  • Waveform type: Stepped approximation to a sinewave

Output Connections:

• (2) IEC Jumpers (Battery Backup)
• (3) IEC 320 C13 (Battery Backup)
• (1) IEC 320 C13 (selector_surgetitle)
• Transfer Time : 6ms typical : 10ms maximum

Input

• Input frequency : 50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections : IEC-320 C14
• Input voltage range for main operations : 195 – 265V

Surge Protection and Filtering

• Surge energy rating : 320Joules
• Data Line Protection : RJ-45 Modem/Fax/DSL/10-100 Base-T protection
• Filtering : Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449

Antarmuka / Interface: DB-9 RS-232
Baterai: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Garansi produk: 1 Tahun

Voltase Masuk: 230V
Voltase Keluar: 230V

Informasi Tambahan

Brand
