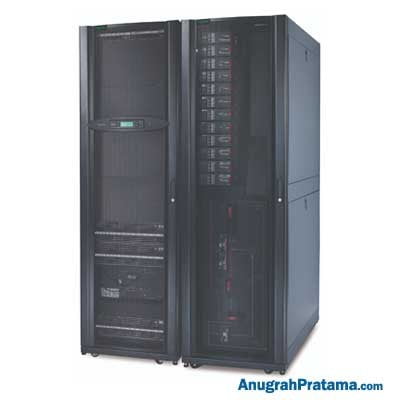

APC Symmetra PX 32kW Scalable to 96kW 400V (with Modular Power Distribution, 10/16kW, 400V Power Module) – [SY32K96H-PD]

Name: APC Symmetra PX 32kW Scalable to 96kW 400V (with Modular Power Distribution, 10/16kW, 400V Power Module) - [SY32K96H-PD]
Brand: Anugrahpratama.com
SKU: 4ff3e350028d
Price: 886088700 IDR
Availability: OutOfStock
Rating: 5 (1 reviews)

Rp886.088.700

Output power capacity: 32.0 KWatts / 32.0 kVA | Max Configurable Power (Watts): 96.0 KWatts / 96.0 kVA | Double Conversion Online | (2x) APC Symmetra PX Power Module, 10/16kW, 400V| (3x) APC High-Performance Battery Module for 400V Symmetra PX 48/96/160KW & 208V Symmetra PX 100KW | (1x) Scheduling Upgrade to 7X24 for Existing Symmetra PX Start-Up Service | (1x) (1) Additional Contract Preventive Maintenance Visit 5X8 for (1) Symmetra PX 64k160H and PDU | (4x) APC IT Power Distribution Module 3×1 Pole 3 Wire 16A 3xIEC309 300cm, 360cm, 420cm

Stok habis

Deskripsi

Anugrahpratama.com Jual APC Symmetra PX 32kW Scalable to 96kW 400V (with Modular Power Distribution, 10/16kW, 400V Power Module) – [SY32K96H-PD]

Spesifikasi:

Output power capacity: 32.0 KWatts / 32.0 kVA
Max Configurable Power (Watts): 96.0 KWatts / 96.0 kVA
Nominal Output Voltage: 230V, 400V 3PH
Neutral Output Current: 80A
Output Voltage Note: Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage
Topology: Double Conversion Online
Waveform type: Sine wave
Bypass: Built-in Static Bypass

Nominal Input Voltage: 400V 3PH
Input frequency: 40 – 70 Hz
Input Connections: Hard Wire 5-wire (3PH + N + G)
Input voltage range for main operations: 340 – 477V
Efficiency at Full Load: 95.0 %
Input Total Harmonic Distortion: Less than 5% for full load
Type of Input Protection Required: gL fuse
Maximum Short Circuit Withstand (Icw): 30.0kAmps
Maximum Input Current: 59.0A
Input Power Factor at Full Load: 0.99

Baterai:

Battery type: VRLA
Included Battery Modules: 3
Typical recharge time: 3.5hour(s)
Nominal Battery Voltage: +/-192 V (split battery referenced to neutral)
End of Discharge Maximum Battery Current: 110.0A
Battery Slots Empty: 6
RBC Quantity: 4
DC Overcurrent Protection: 756A
Extendable Run Time: 1
End of Discharge Battery Voltage: +/-154 V
Efficiency in Battery Operation: 94.0 %
Maximum Available Short Circuit Current: 2kAmps
Overload Operation: 10 minutes @ 125% and 60 seconds @ 150%

Garansi produk: 1 Tahun

Lain – lain:

(2x) APC Symmetra PX Power Module, 10/16kW, 400V
(3x) APC High-Performance Battery Module for 400V Symmetra PX 48/96/160KW & 208V Symmetra PX 100KW
(1x) Scheduling Upgrade to 7X24 for Existing Symmetra PX Start-Up Service
(1x) (1) Additional Contract Preventive Maintenance Visit 5X8 for (1) Symmetra PX 64k160H and PDU
(4x) APC IT Power Distribution Module 3×1 Pole 3 Wire 16A 3xIEC309 300cm, 360cm, 420cm

Informasi Tambahan

Berat	1200 kg
