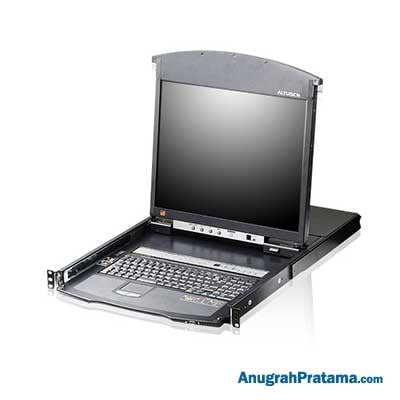

ATEN 16-Port 19 in Dual Rail CAT5 LCD KVM Switch (KL1516AiN-AXA-AG)

Deskripsi

Anugrahpratama.com Jual ATEN 16-Port 19 in Dual Rail CAT5 LCD KVM Switch (KL1516AiN-AXA-AG)

Spesifikasi:

• Console Connections : Local: 1 (Share Remote Bus), Remote: 1
• Computer Connections : Direct: 16, Maximum: 256 (via Daisy Chain)
• Port Selection : OSD (On Screen Display), Hotkeys, Pushbuttons
• Keyboard / Mouse : PS/2, USB
• LCD Module : 19 in TFT-LCD
• Resolution : 1280 x 1024 @ 75 Hz
• Response time : 5 ms
• Viewing Angle : 170 deg (H), 160 deg (V)
• Pixel Pitch : 0.294 mm x 0.294 mm
• Support Color : 16.7M colors
• Contrast Ratio : 1000:1
• Luminance : 250 cd/m2
• Video : Local: 1600 x 1200 @ 60Hz (non-FHD version), Remote: 1920 x 1200 @ 60Hz (FHD version)
• Scan Interval : 1255 sec
• Maximum Input Power Rating : 100-240V AC; 50-60Hz; 1A
• Power Consumption : AC110V:24.4W, AC220V:25.4W
• Housing : Metal

Antarmuka / Interface:

• Console Ports : 2x USB Type-A Female (White), 1x 6-pin Mini-DIN Female (Purple), 1x 6-pin Mini-DIN Female (Green), 1x HDB-15 Female (Blue)
• External Mouse Port : 1x USB Type-A Female
• KVM Ports : 16x RJ-45 Female
• Daisy Chain Ports : 1x DB-25 Male
• PON : 1x RJ-45 Female
• Firmware Upgrade : 1x RJ-11 Female
• LAN Ports : 1x RJ-45 Female
• Power : 1x IEC 60320/C14
• Port Selection : 16x Pushbutton
• Station Selection : 2x Pushbutton
• Reset : 1x Semi-recessed Pushbutton
• Firmware Upgrade : 1x Slide
• Power : 1x Rocker
• LCD Power : 1x Pushbutton
• LCD Adjustment : 4x Pushbutton

Garansi produk: 3 tahun
