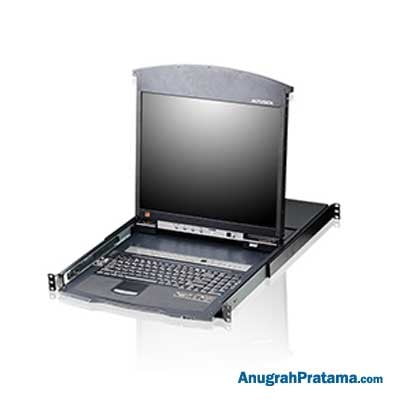

ATEN 16-Port Multi-Interface Cat 5 17 in Dual Rail LCD KVM Switch (KL1516AM-AXA-AG)

Deskripsi

Anugrahpratama.com Jual ATEN 16-Port Multi-Interface Cat 5 17 in Dual Rail LCD KVM Switch (KL1516AM-AXA-AG)

Spesifikasi:

• Computer Connections : Direct: 16, Maximum: 512 (via Daisy Chain)
• Port Selection : OSD (On Screen Display), Hotkeys, Pushbuttons
• Keyboard / Mouse : PS/2, USB, Serial
• LCD Module : 17 in TFT-LCD
• Resolution : 1280 x 1024 @ 75 Hz
• Response time : 5 ms
• Viewing Angle : 170 deg (H), 160 deg (V)
• Pixel Pitch : 0.264 mm x 0.264 mm
• Support Color : 16.7M colors
• Contrast Ratio : 1000:1
• Luminance : 250 cd/m2
• Input Video Resolution : 1920 x 1200 @ 60 Hz
• Second console : 1920 x 1200 @ 60 Hz
• Scan Interval : 1255 sec
• Maximum Input Power Rating : 100-240V AC; 50-60Hz; 1A
• Power Consumption : AC110V:16.8W:89BTU, AC220V:19.8W:103BTU
• Housing : Metal
• Rail Type : Dual Rail

Antarmuka / Interface:

• KVM Ports : 16x RJ-45 Female
• Daisy Chain Ports : 1x DB-25 Male
• Firmware Upgrade : 1x RJ-11 Female
• Power : 1x IEC60320/C14
• External Console Ports : 1x HDB-15 Female (Blue), 2x USB Type A Female, 1x 6-pin Mini-DIN Female (Purple), 1x 6-pin Mini-DIN Female (Green)
• External Mouse Port : 1x USB Type A Female (Front)
• Port Selection : 16x Pushbutton
• Station Selection : 2x Pushbutton
• Reset : 1x Semi-recessed Pushbutton
• Firmware Upgrade : 1x Slide Switch
• Power : 1x Rocker Switch
• LCD Control : 4x Pushbutton
• LCD Power : 1x LED Pushbutton

Garansi produk: 3 tahun
