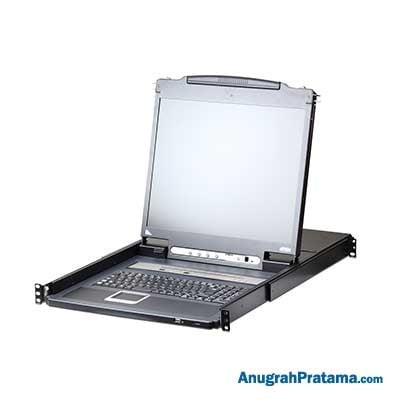

ATEN 16-Port PS/2-USB VGA 17 in Single Rail LCD KVM Switch (CL5716iM-ATA-AG)

Deskripsi

Anugrahpratama.com Jual ATEN 16-Port PS/2-USB VGA 17 in Single Rail LCD KVM Switch (CL5716iM-ATA-AG)

Spesifikasi:

• Console Connections : Local: 1 (Share Remote Bus), Remote: 1
• Computer Connections : Direct: 16, Maximum: 256 (via Cascade)
• Port Selection : OSD, Hotkey, Pushbutton
• Video Remote : 1920 x 1200 @ 60 Hz
• LCD Module : 17-inch TFT-LCD
• Resolution : 1280 x 1024 @ 75 Hz
• Response time : 5 ms
• Viewing Angle : 170 deg (H), 160 deg (V)
• Pixel Pitch : 0.264 mm x 0.264 mm
• Support Color : 16.7M colors
• Contrast Ratio : 1000:1
• Luminance : 250 cd/m2
• Scan Interval : 1-255 seconds
• Keyboard / Mouse : PS/2, USB
• Maximum Input Power Rating : 100-240 VAC, 50-60 Hz, 1A
• Power Consumption : AC110V:26.8W:138BTU, AC220V:27.7W:143BTU
• Housing : Metal + Plastic

Antarmuka / Interface:

• External Console Ports : 1x SPHD-18 Male (Yellow)
• External Mouse Port : 1x USB Type-A Female
• USB Port : 1x USB Type-A Female
• KVM Ports : 16x SPHD-17 Female
• Daisy Chain Ports : 1x DB-25 Male
• Firmware Upgrade : 1x RJ-11 Female
• LAN Ports : 1x RJ-45 Female
• Power : 1x IEC 60320/C14
• Port Selection : 2x Pushbutton
• Station Selection : 2x Pushbutton
• Reset : 1x Semi-recessed Pushbutton
• Firmware Upgrade : 1x Switch
• Power : 1x Rocker Switch
• LCD On/Off : 1x LED Pushbutton (Orange)
• LCD Adjustment : 4x Pushbutton

Garansi produk: 1 Tahun
