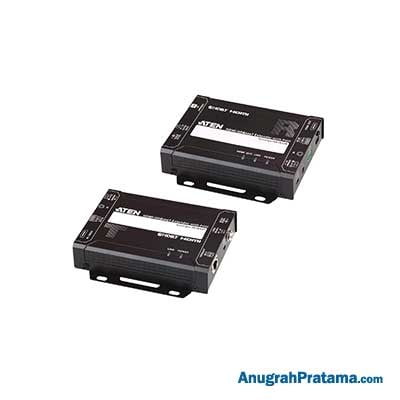

ATEN HDMI HDBaseT Extender with POH (4K@100m) (VE1812-AT-G)

Name: ATEN HDMI HDBaseT Extender with POH (4K@100m) (VE1812-AT-G)
Brand: Anugrahpratama.com
SKU: 7d3c93b7a874
Price: 17984445 IDR
Availability: OutOfStock
Rating: 5 (1 reviews)

Rp17.984.445

HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cable | Supports HDBaseT Long Reach Mode – Up to a maximum range of 150 meters @ 1080p | 4k x 2k HDMI transmission distance up to 100m over Cat 6a or ATEN 2L-2910 Cat 6 cable

Stok habis

Deskripsi

Anugrahpratama.com Jual ATEN HDMI HDBaseT Extender with POH (4K@100m) (VE1812-AT-G)

Spesifikasi:

Video Input : Impedance: 100 ohm, Max. Distance: 1.8 m (VE1812T)
Video Output : Impedance: 100 ohm (VE1812R)
Max. Data Rate : 10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock : 340 MHz
Compliance : HDMI (3D, Deep Color, 4K), HDCP Compatible, Consumer Electronics Control (CEC)
Max. Resolutions / Distance : Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a); 1080p@100m (4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4))
Power Consumption : DC 5V, 6.4W (VE1812R), BTU (VE1812T)
Housing : Metal

Antarmuka / Interface:

Video Input : VE1812T: 1x HDMI Type A Female (Black)
Video Output : VE1812R: 1x HDMI Type A Female (Black)
Audio Input : VE1812T: 1x HDMI Type A Female (Black)
Audio Output : VE1812R: 1x HDMI Type A Female (Black)
Unit To Unit : 1x RJ-45 Female
Power : 1x DC Jack (Black) with locking
RS-232 : Connector: 1 x Terminal Block, 3 pole, Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control
IR : 1x Mini Stereo Jack Female (Black)
Long Reach Mode Switch : 1x Slide Switch – ON/OFF
Firmware Upgrade : 1x Slide Switch – ON/OFF

Garansi produk: 1 Tahun

Informasi Tambahan

Berat	1 kg

Brand

ATEN
