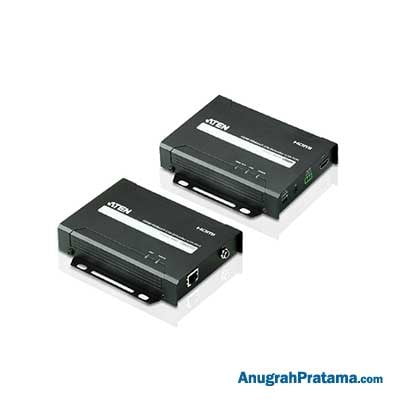

ATEN HDMI HDBaseT-Lite Extender with POH (4K@40m) (VE802-AT-G)

Deskripsi

Anugrahpratama.com Jual ATEN HDMI HDBaseT-Lite Extender with POH (4K@40m) (VE802-AT-G)

Spesifikasi:

• Video Input : Impedance: 100 ohm, Max. Distance: 1.8 m (VE802T)
• Video Output : Impedance: 100 ohm (VE802R)
• Max. Data Rate : 10.2Gbps (3.4Gbps per lane)
• Max. Pixel Clock : 340 MHz
• Compliance : HDMI (3D, Deep Color, 4K), HDCP Compatible, Consumer Electronics Control (CEC)
• Max. Resolutions / Distance : Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6) (4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4))
• Power Consumption : DC5V:4.37W:20BTU (VE802R), DC5V:12.28W:58BTU (VE802T)
• Housing : Metal

Antarmuka / Interface:

• Video Input : VE802T: 1x HDMI Type A Female (Black)
• Video Output : VE802R: 1x HDMI Type A Female (Black)
• Audio Input : VE802T: 1x HDMI Type A Female (Black)
• Audio Output : VE802R: 1x HDMI Type A Female (Black)
• Power : 1 x DC Jack (Black) with locking
• Unit To Unit : 1x RJ-45 Female
• RS-232 : Connector: 1 x Terminal Block, 3 pole, Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control
• IR : 1x Mini Stereo Jack Female (Black)

Garansi produk: 1 Tahun
