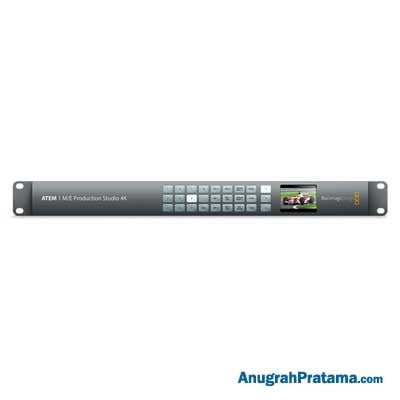

BLACKMAGIC DESIGN ATEM 1 M/E Production Studio 4K

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN ATEM 1 M/E Production Studio 4K

Spesifikasi:

Connections

• Total Video Inputs : 11 with 10 active
• Total Video Outputs : 10
• Total Aux Outputs : 3
• SDI Rates : 270Mb, 1.5G, 3G, 6G
• Total Audio Inputs : 2x XLR, 2 x RCA
• Total Audio Outputs : 2x XLR Program
• Timecode Connections : None
• Reference Input : Tri-Sync or Black Burst
• Video Input Re-Sync : On all 10 inputs
• SDI Video Inputs : 10x 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio
• HDMI Video Input : 1x HDMI type A. 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio
• Analog Audio Outputs : 2x XLR
• SDI Audio Outputs : 2 Ch embedded into SDI output on all outputs
• SDI Program Outputs : 2x 10-bit SD/HD/Ultra HD 4K switchable
• HDMI Program Outputs : 1x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable
• Down Converted SDI Program Output : 1x 10-bit (Ultra HD 4K to HD)
• SDI Preview Output : 1x 10-bit SD/HD/Ultra HD 4K switchable
• Total Multi Views : 1
• SDI Multi View Outputs : 1
• HDMI Multi View Outputs : 1
• Control Panel Connection : Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network
• Tally Output : Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included.)
• Computer Interface : 1x USB 2.0 port

Standards

• SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 424M
• Video Sampling : 4:2:2
• Color Precision : 10-bit
• Color Space : REC 601, REC 709, REC 2020

Product Specifics

• Upstream Keyers : 4 with Chroma/Linear/Luma key
• Downstream Keyers : 2
• Chroma Keyers : 4
• Talkback Support : None
• Mix Minus Support : None
• Linear/Luma Keyers : 7
• Transition Keyer (Stinger/DVE) : 1 Stinger, 1 DVE
• Total Number of Layers : 8
• Pattern Generators : 7
• Color Generators : 2
• DVE with 3D Borders & Drop Shadow : 1
• Control Panel Compatibility : ATEM 1 M/E Broadcast Panel preferred. Compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. Includes ATEM Software Control Panel

Media Player

• Media Player : 2
• Channels : Channels
• Media Pool Still Image Capacity : 32 with fill and key
• Media Pool Clip Capacity : 2 with fill and key
• Media Player Clip Length in 720 HD : 1600 frames
• Media Player Clip Length in 1080 HD : 720 frames
• Media Player Clip Length in Ultra HD : 180 frames
• Maximum Clip Length in NTSC/PAL : 3600 frames
• Media Pool Still Image Format : PNG, TGA, BMP, GIF, JPEG and TIFF
• Media Pool Video File Format : TGA Sequence
• Media Pool Audio File Format : WAV, MP3 and AIFF

Multi View Monitoring

• Multi View Monitoring : 1x 10 views
• Routable Windows : 8
• Tally : Red for program and green for preview indication
• Windows Source Labels : Yes
• Multi View Video Standard : HD

Display

• Interface : Minimum monitor resolution of 1366 x 768
• Front Panel : Built in LCD monitor for video and 42 LED buttons for Aux switching

Processing

• Colorspace Conversion : Hardware based real time
• Processing Delay : < 2 Lines
• Audio Mixer : 12 input x 2 channel mixer, Selectable On/Off/Audio-Follow-Video, Level and Peak metering, Master gain control, Analog outputs may be used for separate monitoring
• 4K to HD Down Conversion : Yes, program x 1

Software

• Control Panel Included : ATEM Software Control Panel included free for Mac 10.12 Sierra, Mac 10.13 High Sierra or later and Windows 8.1 64-bit or Windows 10 64-bit
• Software Updates : Using USB 2.0 connection directly connected to Mac OS or Windows computers. Includes ATEM Setup Utility
• Configuration : Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis

Operating Systems

• Mac 10.14 Mojave, Mac 10.15 Catalina or later
• Windows 8.1 and 10

Power Requirements

• Power Supply : 1x Internal 100 – 240V AC

Garansi produk: 12 Months Limited Manufacturer’s Warranty
