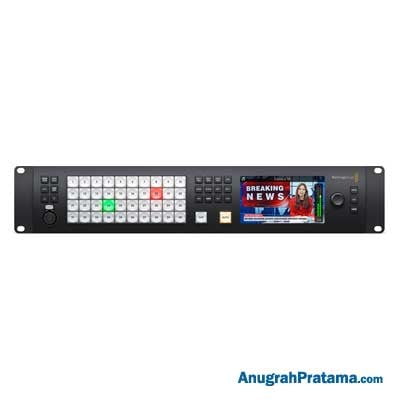

BLACKMAGIC DESIGN ATEM 4 M/E Constellation HD

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN ATEM 4 M/E Constellation HD

Spesifikasi:

Connections

• Total Video Inputs : 40
• Total Video Outputs : 24
• SDI Rates : 1.5G, 3G
• Total Audio Inputs : 2x balanced 1/4 inch Jack, 1x 32 stereo channel BNC MADI in, 1x 5 pin XLR Talkback
• Total Audio Outputs : 2x balanced 1/4 inch Jack, 2x 32 stereo channel BNC MADI out, 1x 5 pin XLR Talkback
• SDI Audio Inputs : 2 Ch embedded audio on all SDI inputs
• SDI Audio Outputs : 2 Ch embedded audio on all SDI outputs
• Timecode Connections : None
• Reference Input : Tri-Sync or Black Burst
• Video Input Re-Sync : On all 40 inputs
• Frame Rate and Format Converters : On all 40 inputs
• SDI Aux Outputs : Any of the 24 SDI outputs
• SDI Preview Outputs : Any of the 24 SDI outputs
• SDI Program Outputs : Any of the 24 SDI outputs
• Down Converted SDI Program Output : None
• Webcam Output : 1x USB-C supporting 720p or 1080p at PGM frame rate
• Total Multi Views : 4x 3G-SDI
• Remote : RJ12 supports RS-422
• Control Panel Connection : Ethernet. Direct connection between panel and chassis, or via network
• Internal Timecode Generator : Yes
• Talkback : RJ45 for 3rd party talkback systems
• Tally Output : Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included)
• Ethernet : Supports 10/100/1000 BASE-T
• Computer Interface : 1x USB-C supports USB 2.0

Standards

• SDI Compliance : SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B
• Video Sampling : 4:2:2
• Color Precision : 10-bit
• Color Space : REC 709
• SDI Auto Switching : Automatically detects between 1.5G-SDI and level A or level B 3G-SDI

Product Specifics

• Upstream Keyers : 16
• Downstream Keyers : 4
• Advanced Chroma Keyers : 16
• Talkback Support : Yes
• SuperSource : 2
• Mix Minus Support : Yes
• Linear/Luma Keyers : 21
• Transition Keyer (Stinger/DVE) : 4 Stinger, 4 DVE
• Total Number of Layers : 28
• Pattern Generators : 21
• Color Generators : 2
• Control Panel : Front fascia emergency switching, software or optional hardware panel
• Routable Windows : 64
• Tally : Red for program and green for preview indication
• Windows Source Labels : Yes

Multi View Monitoring

• Multi View Monitoring : 4x multi views each configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, M/Es, DSKs, SuperSource, Clean Feed with optional labels and audio meters
• Multi View Video Standard : HD
• Display Minimum Resolution : 1366 x 768

Media Player

• Media Player : 4
• Channels : Fill and key for each media player
• Media Pool Still Image Capacity : 60
• Media Pool Clip Capacity : 4x up to 1080p60
• Media Player Clip Length in 720 HD : 1200 frames
• Media Player Clip Length in 1080 HD : 600 frames
• Media Pool Still Image Format : PNG, TGA, BMP, GIF, JPEG and TIFF
• Media Pool Video File Format : TGA Sequence
• Media Pool Audio File Format : WAV, MP3 and AIFF

Display

• Front panel : Built in 5 inch HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button

Processing

• Processing Delay : < 10 Lines
• Audio Mixer : 156 Channel mixer Selectable On/Off/Audio-Follow-Video, Level and Peak metering, Master gain control, 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter
• HD Down Conversion : None

Software

• Control Panel Included : ATEM Software Control Panel included free for Mac 11.11 Big Sur, Mac 12 Monterey or later and Windows 10 or 11
• Software Updates : Using USB or Ethernet connection directly connected to Mac OS or Windows computers. Includes ATEM Setup Utility
• Configuration : Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis

Operating Systems

• Mac 11.1 Big Sur, Mac 12.0 Monterey or later
• Windows 10 and 11

Power Requirements

• Power Supply : 2x Internal 100 – 240 AC
• Power Usage : 147W

Garansi produk: 12 Months Limited Manufacturer’s Warranty
