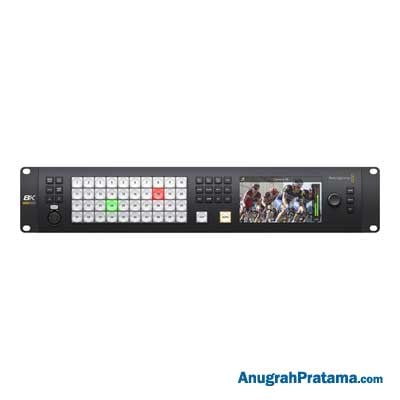

BLACKMAGIC DESIGN ATEM Constellation 8K

Rp305.405.100

40x 12G-SDI Inputs, 2 x 12G-SDI Outputs | 24x 12G-SDI AUX Outputs | Standards Converter on Each Input | 4x DVE, 16x Keyers | 4x Media Players | 4x Multiview Outputs | Built-In LCD View Screen | Front Panel or Ethernet Control | Built-In Fairlight Audio Mixer | Front and Rear Talkback Connectors

Stok habis

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN ATEM Constellation 8K

Spesifikasi:

Connections

  • Total Video Inputs : 40x up to Ultra HD / 10x in 8K
  • Total Video Outputs : 28x up to Ultra HD / 7x in 8K
  • Total Aux Outputs : 24x up to Ultra HD / 6x in 8K
  • SDI Rates : 1.5G, 3G, 6G, 12G
  • Total Audio Inputs : 2x balanced 1/4 inch Jack, 1x 32 stereo channel BNC MADI in
  • Total Audio Outputs : 2x balanced 1/4 inch Jack, 2x 32 stereo channel BNC MADI out
  • Timecode Connections : None
  • Reference Input : Tri-Sync or Black Burst
  • Video Input Re-Sync : On all 40 inputs
  • Frame rate and format converters : On all 40 inputs
  • SDI Video Inputs : 40x 10-bit 720p, 1080i, 1080p, 2160p and 10x 4320p switchable
  • Extra Audio Outputs : 1x 5 pin XLR Talkback
  • SDI Audio Outputs : 2 Ch embedded into SDI output on all outputs
  • Extra Audio Inputs : 1x 5 pin XLR Talkback
  • SDI Program Outputs : Any of the 24 SDI outputs
  • Down Converted SDI Program Output : None
  • SDI Preview Outputs : Any of the 24 SDI outputs
  • Total Multi Views : 4x up to Ultra HD / 1x in 8K
  • SDI Multi View Outputs : 4
  • HDMI Multi View Outputs : None
  • Remote : RJ12 supports RS-422
  • Control Panel Connection : Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network
  • Internal Timecode Generator : Yes
  • Talkback : RJ45 for 3rd party talkback systems
  • Tally Output : Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included)
  • Computer Interface : 1x USB 2.0 port

Standards

  • SDI Compliance : SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10, SMPTE 2082-12
  • Video Sampling : 4:2:2
  • Color Precision : 10-bit
  • Color Space : REC 709
  • SDI Auto Switching : Automatically detects between level A and level B 3G-SDI, 6G-SDI and 12G-SDI. Requires 2SI in 8K mode

Product Specifics

  • Upstream Keyers : 16x up to Ultra HD / 4x in 8K with Chroma/Linear/Luma key
  • Downstream Keyers : 4x up to Ultra HD / 2x in 8K
  • Advanced Chroma Keyers : 16x up to Ultra HD / 4x in 8K
  • SuperSource : 2
  • Talkback Support : Yes
  • Mix Minus Support : Yes
  • Linear/Luma Keyers : 21x up to Ultra HD/ 7x in 8K
  • Transition Keyer (Stinger/DVE) : 4 Stinger, 4 DVE
  • Total Number of Layers : 28x up to Ultra HD / 7x in 8K
  • Pattern Generators : 21x up to Ultra HD / 9x in 8K
  • Color Generators : 2
  • DVE with 3D Borders & Drop Shadow : 4x up to Ultra HD / 1x in 8K
  • Control Panel : Front fascia emergency switching, software or optional hardware panel
  • Routable Windows : 64x up to Ultra HD / 16x in 8K
  • Tally : Red for program and green for preview indication
  • Windows Source Labels : Yes

Multi View Monitoring

  • Multi View Monitoring : 4x 16 Multi View pattern options for up to 64 total views
  • Multi View Video Standard : Select HD, Ultra HD or 8K

Media Player

  • Media Player : 4x up to Ultra HD / 1x in 8K
  • Channels : Fill and key for each media player
  • Media Pool Still Image Capacity : 64x up to Ultra HD / 24x in 8K with fill and key
  • Media Pool Clip Capacity : 4x up to Ultra HD / 2x in 8K with fill and key
  • Media Player Clip Length in 720 HD : 3200 frames
  • Media Player Clip Length in 1080 HD : 1600 frames
  • Media Player Clip Length in Ultra HD : 400 frames
  • Media Player Clip Length in 8K : 100 frames
  • Media Pool Still Image Format : PNG, TGA, BMP, GIF, JPEG and TIFF
  • Media Pool Video File Format : TGA Sequence
  • Media Pool Audio File Format : WAV, MP3 and AIFF

Display

  • Interface : Minimum monitor resolution of 1366 x 768
  • Front panel : Built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button

Processing

  • Processing Delay : < 7 lines in up to Ultra HD / in 10 lines in 8K
  • Audio Mixer : 156 Channel mixer Selectable On/Off/Audio-Follow-Video, Level and Peak metering, Master gain control, 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter
  • HD Down Conversion : None

Software

  • Control Panel Included : ATEM Software Control Panel included free for Mac 10.13 High Sierra, Mac 10.14 Mojave or later and Windows 8.1 64-bit or Windows 10 64-bit
  • Software Updates : Using USB 2.0 connection directly connected to Mac OS or Windows computers. Includes ATEM Setup Utility
  • Configuration : Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis

Operating Systems

  • Mac 10.14 Mojave, Mac 10.15 Catalina or later
  • Windows 8.1 and 10, both 64-bit

Power Requirements

  • Power Supply : 2x Internal 100 – 240 AC
  • Power Usage : 300W

Garansi produk: 12 Months Limited Manufacturer’s Warranty

Informasi Tambahan

Berat 9 kg
