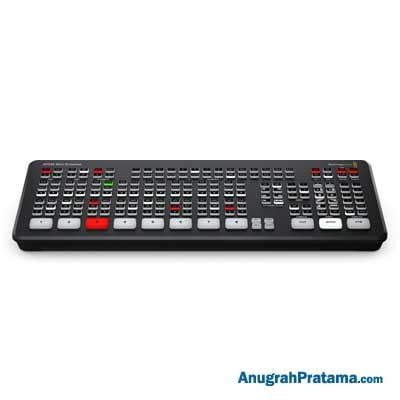

BLACKMAGIC DESIGN ATEM Mini Extreme

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN ATEM Mini Extreme

Spesifikasi:

Connections

• Total Video Inputs : 8
• Total Outputs : 4
• Total Aux Outputs : 2
• Total Audio Inputs : 2x 3.5mm stereo mini jack
• Total Audio Outputs : 1x 3.5mm stereo mini jack
• Timecode Connection : None
• HDMI Video Inputs : 8x HDMI type A, 10-bit HD switchable, 2 channel embedded audio
• Video Input Re-Sync : On all 8 HDMI inputs
• Frame Rate and Format Converters : On all 8 HDMI inputs
• HDMI Program Outputs : 2
• Ethernet : Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection
• Computer Interface : 2x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection

Standards

• Video Sampling : 4:2:2 YUV
• Color Precision : 10-bit
• Color Space : Rec 709
• Colorspace Conversion : Hardware based real time

Product Specifics

• Upstream Keyers : 4
• Downstream Keyers : 2
• Advanced Chroma Keyers : Up to 4
• Linear/Luma Keyers : Up to 4
• Transition Keyer : DVE only
• Total Number of Layers : 9
• Pattern Generators : 5
• Color Generators : 2
• DVE With Borders and Drop Shadow : 2
• Interface : Minimum monitor resolution of 1366 x 768

Audio

• Audio Mixer : 11 input x 2 channel mixer, Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel, Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control
• Analog Input : Unbalanced stereo
• Analog Input Delay : Up to 8 frames
• Input Impedance : 1.8k
• Max Input Level : +6dBV
• Mic Plug In Power : Available on both 3.5mm mini jack connections

Streaming

• Direct Streaming : ATEM Mini Extreme supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB-C

Recording

• Direct Recording Video and Audio : USB-C 3.1 Gen 1 expansion port can record directly to external media
• Video Recording : 1x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio
• Media Format : Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system

Multi View Monitoring

• Multi View Monitoring : Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters
• Multi View Video Standard : HD

Media Player

• Media Players : 2
• Channels : Fill and key for each Media Player
• Media Pool Still Image Capacity : 20 with fill and key
• Media Pool Still Image Format : PNG, TGA, BMP, GIF, JPEG and TIFF

Control

• Control Panel : Built in control panel. Software control panel with camera control included. Supports optional hardware panel
• Control Panel Connection : Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Extreme also supports direct USB-C connection. Ethernet or USB-C used for updating the software
• Control Panel Compatibility : Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM Mini Extreme can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro
• Control Panel Included : ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina, Mac 11 Big Sur or later and Windows 10 64 bit only

Software

• Software Updates : Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility
• Configuration : Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis

Operating Systems

• Mac 10.15 Catalina, Mac 11.1 Big Sur or later
• Windows 10 64-bit

Power Requirements

• Power Supply : 1x External 12V power supply
• Power Usage : 36W

Garansi produk: 12 Months Limited Manufacturer’s Warranty
