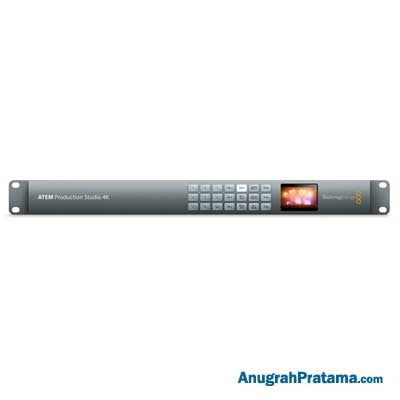

BLACKMAGIC DESIGN ATEM Production Studio 4K

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN ATEM Production Studio 4K

Spesifikasi:

Connections

• Total Video Inputs : 8
• Total Video Outputs : 6
• SDI Rates : 270Mb, 1.5G, 3G, 6G
• Total Audio Inputs : 2x XLR, 2x RCA
• Total Audio Outputs : 2x XLR Program
• Timecode Connections : None
• SDI Video Inputs : 4x 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio
• HDMI Video Input : 4x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable, 2 channel embedded audio
• SDI Audio Outputs : 2 channel embedded into SDI output
• Reference Input : Tri-Sync or Black Burst
• Video Input Re-Sync : On all 8 inputs
• SDI Program Outputs : 1x 10-bit SD/HD/Ultra HD 4K switchable
• HDMI Program Outputs : 1x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable
• Down Converted SDI Program Outputs : 1x 10-bit HD (Ultra HD 4K to HD)
• SDI Aux. Output : 1
• Total Multi Views : 1
• SDI Multi View Outputs : 1
• HDMI Multi View Outputs : 1
• Control Panel Connection : Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network

Standards

• SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 424M
• SDI Video Sampling : 4:2:2
• SDI Color Precision : 10-bit
• SDI Color Space : REC 601, REC 709
• Colorspace Conversion : Hardware based real time
• Processing Delay : 1 Line
• Audio Mixer : 10 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. Analog outputs may be used for separate monitoring
• 4K to HD Down Conversion : Yes, program x 1

Product Specifics

• Upstream Keyers : 1 with Chroma/Linear/Luma key
• Downstream Keyers : 2
• Chroma Keyers : 1
• Talkback Support : None
• Mix Minus Support : None
• Linear/Luma Keyers : 3
• Transition Keyer (Stinger/DVE) : None
• Total Number of Layers : 4
• Pattern Generators : 3
• Color Generators : 2
• DVE with 3D Borders & Drop Shadow : None
• Display interface : Minimum monitor resolution of 1366 x 768
• Number of Windows : 1x 10
• Routable Windows : 8
• Tally : Red for program and green for preview indication
• Windows Source Labels : Yes
• Control Panel : Software or optional hardware panel

Media Player

• Media Player : 2
• Media Pool Still Image Capacity : 20 with fill and key
• Media Pool Clip Capacity : None
• Media Player Clip Length in 720 HD : None
• Media Player Clip Length in 1080 HD : None
• Media Player Clip Length in Ultra HD : None
• Media Pool Still Image Format : PNG, TGA, BMP, GIF, JPEG and TIFF
• Media Pool Video File Format : None
• Media Pool Audio File Format : None
• Channels : Fill and key for each Media Player

Multi View Monitoring

• Multi View Monitoring : 1x 10 Views
• Multi View Video Standard : HD

Display

• Interface : Minimum monitor resolution of 1366 x 768
• Front Panel : Built in LCD monitor for video and 42 LED buttons for Aux switching

Software

• Control Panel Included : ATEM Software Control Panel included free for Mac 10.10 Yosemite, Mac 10.11 El Capitan or later and Windows 8.1 64-bit or Windows 10 64-bit
• Tally Output : Added via Ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included.)
• Software Updates : Using USB connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility
• Configuration : Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis

Operating Systems

• Mac 10.14 Mojave, Mac 10.15 Catalina or later
• Windows 8.1 and 10

Power Requirements

• Power Supply : 1x Internal 100 – 240V AC
• Power Usage : 60W

Garansi produk: 12 Months Limited Manufacturer’s Warranty
