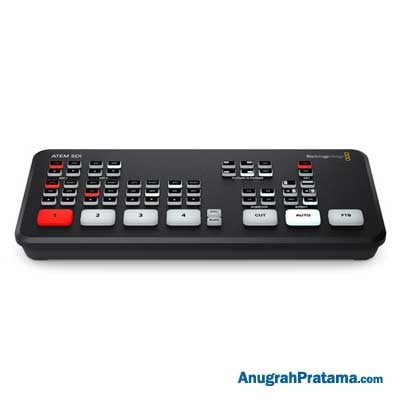

BLACKMAGIC DESIGN ATEM SDI

Rp9.371.700

4-Channel Live Stream 3G-SDI Switcher | Input/Output up to 1080p60 10-Bit 4:2:2 | 2-Channel Digital Audio Mixer | 2x 3G-SDI Output, Ethernet ATEM Control | Media Player, Computer Input Support | Upstream and Downstream Keyers | DVE Transition, Chroma/Luma Keyers | Color and Pattern Generators | USB Type-C Streaming/Webcam Output

Stok habis

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN ATEM SDI

Spesifikasi:

Connections

  • Total Video Inputs : 4
  • Total Outputs : 3
  • Total Aux Outputs : 2
  • Total Audio Inputs : 2x 3.5mm stereo mini jack
  • Total Audio Outputs : None, embedded audio only
  • Timecode Connection : None
  • SDI Video Inputs : 4x 3G-SDI, 10-bit HD switchable, 2 channel embedded audio
  • Video Input Re-Sync : On all 4 SDI inputs
  • Frame Rate and Format Converters : On all 4 SDI inputs
  • SDI Program Outputs : 2
  • Ethernet : Ethernet supports 10/100/1000 BaseT software control, software updates and direct or network panel connection
  • Computer Interface : 1x USB Type-C 2.0 for webcam out, software control, software updates and panel connection

Standards

  • Video Sampling : 4:2:2 YUV
  • Color Precision : 10-bit
  • Color Space : Rec 709
  • Colorspace Conversion : Hardware based real time

Product Specifics

  • Upstream Keyers : 1
  • Downstream Keyers : 1
  • Advanced Chroma Keyers : 1
  • Linear/Luma Keyers : 2
  • Transition Keyer : DVE only
  • Total Number of Layers : 5
  • Pattern Generators : 1
  • Color Generators : 1
  • DVE With Borders and Drop Shadow : 1
  • Interface : Minimum monitor resolution of 1366 x 768

Audio

  • Audio Mixer : 6 input x 2 channel mixer, Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel, Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control
  • Analog Input : Unbalanced stereo
  • Analog Input Delay : Up to 8 frames
  • Input Impedance : 1.8k
  • Max Input Level : +6dBV
  • Mic Plug In Power : Available on both 3.5mm mini jack connections

Media Player

  • Media Players : 1
  • Channels : Fill and key for each Media Player
  • Media Pool Still Image Capacity : 20 with fill and key
  • Media Pool Still Image Format : PNG, TGA, BMP, GIF, JPEG and TIFF

Control

  • Control Panel : Built in control panel. Software control panel included. Supports optional hardware panel
  • Control Panel Connection : Ethernet supports 10/100 BaseT. Allows direct connection between panel and chassis, or via network. Also used for updating the software. ATEM SDI supports direct USB-C connection
  • Control Panel Compatibility : Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel
  • Control Panel Included : ATEM Software Control Panel included free for Mac 11.0 Big Sur, Mac 12.0 Monterey or later and Windows 10 or 11

Software

  • Software Updates : Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility
  • Configuration : Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis

Operating Systems

  • Mac 11.0 Big Sur, Mac 12.0 Monterey or later
  • Windows 10 and 11

Power Requirements

  • Power Supply : 1x External 12V power supply
  • Power Usage : 18W

Garansi produk: 12 Months Limited Manufacturer’s Warranty

Informasi Tambahan

Berat 1 kg

Brand

BLACKMAGIC DESIGN
