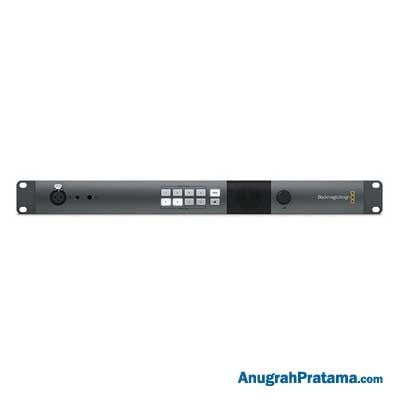

BLACKMAGIC DESIGN ATEM Studio Converter 2

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN ATEM Studio Converter 2

Spesifikasi:

Format Support

• 4K : DCI 4096 x 2160p: 60/50/30/29.97/25/24/23.98, UHD 3840 x 2160p: 60/59.94/50/30/29.97/25/24/23.98
• 2K : 2048 x 1080p: 25/24/23.98, 2048 x 1080PsF: 25/24/23.98
• HD : 1080p: 60/59.94/50/30/29.97/25/24/23.98, 1080PsF: 60/59.94/50/30/29.97/25/24/23.98, 1080i: 60/59.94/50, 720p: 60/59.94/50
• SD : NTSC 525i: 59.94, PAL 625i: 50

Video

• SDI Video Input : 4x 10-bit SD/HD switchable camera inputs, 1x 10-bit SD/HD switchable program input from switcher, including Tally information embedded in the SDI signal
• SDI Compliance : SMPTE 259M, SMPTE 292M
• Video Sampling : 4:2:2
• Color Precision : 10-bit
• Color Space : REC 601, REC 709
• Optical Fiber Video Input : 4x single mode SD/HD switchable camera inputs with LC connector
• Optical Fiber : Input: 4x single mode LC connectors for video with embedded audio, Channels 1 & 2 are camera audio,
  Channels 15 & 16 are talkback audio ; Output: 4x single mode LC connectors for video with embedded audio, Channels 1 & 2 are camera audio, Channels 15 & 16 are talkback audio

Audio

• Audio Sampling : 48 kHz 24-bit A/D conversion
• Analog Audio Output : 4x 3-Pin XLR Balanced Audio Pairs (1x pair per fiber input), 2x RCA jacks provide a L/R stereo pair
• Talkback : 1x 1/4 inch TRS headphone jack, 1x .206 inch TRS mic input for use with aviation style headset, 1x 3-pin XLR connector for talkback microphone, 1x Integrated speaker
• Talkback Control : 8x Front panel buttons for camera operator selection, lock, mute and un-mute
• AES/EBU Talkback Loops : Input: 1x BNC mic input, 1x BNC headphone input ; Output: 1x BNC mic output, 1x BNC headphone output

General

• OS Compatibility : Mac OS X 10.7 Lion and later, Mac OS X 10.8 Mountain Lion and later, Windows 7, Windows 8
• Computer Interface : 1x mini-B type USB 2.0 connector for initial setup, firmware updates and Converter Utility software control
• Power Requirements : 110 – 220 VAC, 50/60 Hz, 12 – 31 VDC redundant input

Garansi produk: 3 Year Limited Manufacturer’s Warranty
