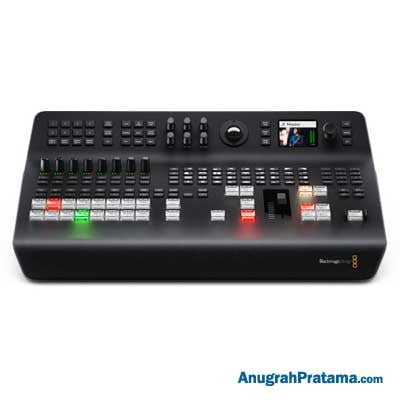

BLACKMAGIC DESIGN ATEM Television Studio Pro 4K

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN ATEM Television Studio Pro 4K

Spesifikasi:

Connections

• Total Video Inputs : 8
• Total Outputs : 12
• Total Aux Outputs : 1
• SDI Rates : 1.5G, 3G, 6G, 12G
• Total Audio Inputs : 2x XLR., 1x Microphone
• Total Audio Outputs : 1x Headphone
• SDI Video Inputs : 8x 10-bit HD/UHD switchable, 2 channel embedded audio
• HDMI Video Inputs : None
• Reference Inputs : Tri-Sync or Black Burst
• Video Input Re-Sync : On all 8 inputs
• Frame rate and format convertors : On all 8 inputs
• SDI Program Outputs : 9x 10-bit HD/UHD switchable
• SDI Audio Outputs : 2 Ch embedded into SDI output
• Total Multi Views : 1
• SDI Multi View Outputs : 1
• HDMI Multi View Outputs : 1

Standards

• SDI Compliance : 292M and 424M, 2081, 2082
• Video Sampling : 4:2:2 10-bit
• Color Precision : 4:2:2 10-bit
• Color Space : 4:2:2 YUV
• Colorspace Conversion : None
• Processing Delay : 6 Lines
• Audio Mixer : 12 input x 2 channel mixer, Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel, Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ, Delay line and Stereo Synthesizer on the XLR inputs only, Master gain control. Headphone output level control with separate mix of Program, Talkback and Sidetone

Product Specifics

• Upstream Keyers : 1 with Chroma/Linear/Luma key
• Downstream Keyers : 2
• Chroma Keyers : 1
• Linear/Luma Keyers : 3
• Talkback Support : Built in, uses aviation headset
• Mix Minus Support : Yes, on 8 camera PGM outputs
• Transition Keyer (Stinger/DVE) : Stinger, DVE
• Total Number of Layers : 5
• Pattern Generators : 2
• Color Generators : 2
• DVE with 3D Borders & Drop Shadow : 1
• Interface : Minimum monitor resolution of 1366 x 768
• Number of Windows : 1x 10
• Routable Windows : 8 routable and 2 fixed for Program and Preview
• Tally : Red for program and green for preview indication
• Tally Output : Embedded via SDI. Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included)
• Windows Source Labels : Yes

Multi View Monitoring

• Multi View Monitoring : 1x 10 Views
• Multi View Video Standard : HD/Ultra HD

Media Player

• Media Player : 2, with non volatile flash memory
• Media Pool Still Image Capacity : 20 with fill and key
• Channels : Fill and key for each Media Player
• Media Pool Clip Capacity : 2 with fill and key
• Media Player Clip Length in 720 HD : 1440 frames
• Media Player Clip Length in 1080 HD : 360 frames
• Media Player Clip Length in Ultra HD : 90 frames
• Media Pool Still Image Format : PNG, TGA, BMP, GIF, JPEG and TIFF
• Media Pool Video File Format : TGA Sequence
• Media Pool Audio File Format : WAV, MP3 and AIFF

Control

• Control Panel : Built in with camera control. Software panel included. Supports optional broadcast panel
• Control Panel Compatibilty : Compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. Includes ATEM Software Control Panel
• Control Panel Included : ATEM Software Control Panel included free for Mac 10.12 Sierra or Mac 10.13 High Sierra or later and Windows 8.1 64-bit or Windows 10 64-bit

Software

• Software Updates : Using USB connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility
• Configuration : Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis

Operating Systems

• Mac 10.14 Mojave, Mac 10.15 Catalina or later
• Windows 8.1 and 10

Power Requirements

• Power Supply : 1x Internal 100 – 240V AC. 4 pin 12V DC
• Power Usage : 70W

Garansi produk: 12 Months Limited Manufacturer’s Warranty
