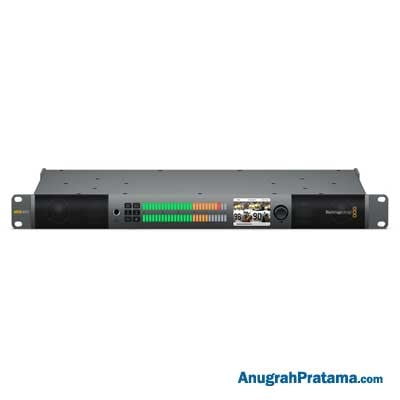

BLACKMAGIC DESIGN Blackmagic Audio Monitor 12G

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN Blackmagic Audio Monitor 12G

Spesifikasi:

Connections

• SDI Video Inputs : 1
• SDI Video Outputs : 1 loop out
• SDI Rates : 270Mb, 1.5G, 3G, 6G, 12G
• HDMI 2.0 Video Outputs : 1
• Multi Rate Support : SDI and HDMI are switchable between standard definition, high definition and ultra high definition
• SDI Video Loop : 1x reclocked 10-bit SD/HD/3G-SDI, 6G-SDI and 12G-SDI
• Analog Audio Inputs : 2x XLR. 2 x RCA HiFi
• Analog Audio Outputs : 1x 6.5mm headphone socket
• Digital Audio Inputs : 1x XLR
• Built in Speaker : Stereo with 2-way crossover and independent stereo subwoofers
• AES/EBU Audio Inputs : 2 channels balanced 110O AES/EBU via XLR
• SDI Audio Inputs : 16 channels embedded in SD, HD and UltraHD 4K
• SDI Audio Outputs : 16 channels embedded audio loop out
• HDMI Audio Outputs : 8 Channels embedded in SD, HD and 4K
• Ethernet : 1Gb/sec for configuration and firmware updates
• Computer Interface : USB-C for configuration and firmware updates
• Metering : 2x 27 RGB segment LED VU, PPM or Loudness meters
• Modes : Push button interface allows for input selection, channel selection, independent left and right audio, mute and volume control with scroll wheel

Standards

• SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
• SDI Auto Switching : Automatically selects between SD, HD, 3G-SDI Level A and B, 6G-SDI and 12G-SDI
• Audio Sampling : 96 KHz and 24 bit
• Video Sampling : 4:2:2 and 4:4:4

Audio Meter Ballistics

• 54 RGB segment LEDs allowing selection of metering with VU, PPM EBU, PPM BBC or Loudness. Includes replaceable level scale

Control

• Built-in Control Panel : 2.2 inch display for viewing video input, video standard and selected audio input

Software

• Internal Software Upgrade : Via USB connection and Ethernet

Operating Systems

• Mac 10.13 High Sierra, Mac 10.14 Mojave or later
• Windows 8.1 and 10

Display

• Display Element : 2.2 inch diagonal color LCD
• Display Resolution : 320 x 240
• Input Display : SDI video, format, audio type and audio channels

Power Requirements

• Power Supply : 1x Internal 100 – 240V AC
• Power Usage : 55W

Garansi produk: 12 Month Limited Manufacturer’s Warranty
