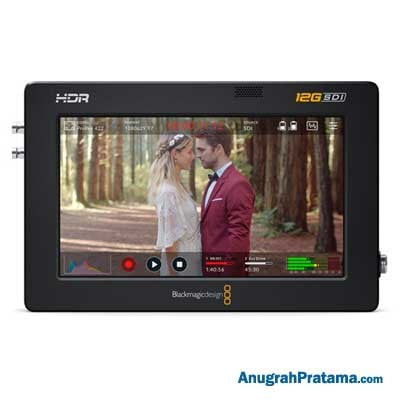

BLACKMAGIC DESIGN Blackmagic Video Assist 5 Inch 12G HDR

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN Blackmagic Video Assist 5 Inch 12G HDR

Spesifikasi:

Connections

• SDI Video Inputs : 1x Micro BNC
• SDI Video Outputs : 1x Micro BNC
• SDI Rates : 270Mb, 1.5G, 3G, 6G, 12G
• HDMI 2.0a Video Inputs : 1
• HDMI 2.0a Video Outputs : 1
• Analog Audio Inputs : None, embedded audio only
• Analog Audio Outputs : 1x 3.5 mm headphone jack
• Built in Speaker : Mono
• Screen Dimensions : 5 inch 1920 x 1080
• Screen Brightness : 2500nits
• Screen Color : P3 wide color gamut
• SDI Audio Inputs : 16 channels embedded via 12G-SDI
• SDI Audio Outputs : 16 channels embedded via 12G-SDI
• HDMI Audio Inputs : 8 channels embedded via HDMI 2.0a
• HDMI Audio Outputs : 8 channels embedded via HDMI 2.0a
• Remote Control : None
• SD Interface : 1x UHS-II SD slot
• Storage Type : Removable SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards, Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards
• Computer Interface : 1x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, initial setup, software updates and Video Assist Utility software control.

Standards

• SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M, SMPTE 2084
• SDI Metadata Support : HD RP188
• Audio Sampling : Television standard sample rate of 48 kHz and 24-bit
• Video Sampling : 4:2:2 YUV
• Color Precision : 10-bit
• Color Space : REC 601, REC 709, REC 2020
• HDR Support : HDR10, Hybrid Log Gamma
• Multiple Rate Support : SDI and HDMI switches between 270 Mb/s, 1.5 Gb/s, 3 Gb/s, 6 Gb/s and 12 Gb/s
• SDI RAW : Blackmagic RAW

HDMI Video Standards

• HDMI Color Precision : 10-bit
• HDR Support : HDR10, Hybrid Log Gamma
• Copy Protection : HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content

Media

• Media : 1x UHS-II SD for Ultra HD, compatible with regular SD for HD recording. USB Type-C 3.1 Gen 1 for external drive recording
• Media Type : SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards

Supported Codecs

• Blackmagic RAW Constant Bitrate 3:1, Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1, Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q5, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, DNxHR HQX, DNxHR SQ, DNxHR LB, DNxHR HQX MXF, DNxHR SQ MXF, DNxHR LB MXF

Control

• Recorder Control : Integrated capacitive touchscreen LCD with Blackmagic OS onscreen controls for settings and navigating menus
• External Control : SDI and HDMI start/stop and timecode run

Blackmagic RAW

• Supported Cameras : Canon EOS C300 Mark II, FUJIFILM GFX100, FUJIFILM GFX100S, FUJIFILM XH2s, FUJIFILM X-H2, Leica SL2-S, Nikon Z 6, Nikon Z 7, Nikon Z 6II, Nikon Z 7II, Panasonic AU-EVA1, Panasonic LUMIX GH5S, Panasonic LUMIX BGH1, Panasonic LUMIX BS1H, Panasonic LUMIX S1, Panasonic LUMIX S1H, Panasonic LUMIX S5, SIGMA fp, SIGMA fp L, Z CAM E2, Z CAM E2-M4, Z CAM E2-F6

Scopes

• Scopes : Waveform, RGB Parade, Vector, RGB Histogram
• Viewing Modes : Scopes with picture in picture or picture overlay and opacity control. Waveform and Parade with standard and HDR graticules

Software

• Software Included : Blackmagic OS

Operating Systems

• Mac 10.14 Mojave, Mac 10.15 Catalina or later
• Windows 8.1 and 10

Power Requirements

• Power Supply : 1x External 12V power supply, Compatible with Sony NP-F style batteries (batteries not included)

Garansi produk: 12 Month Limited Manufacturer? Warranty
