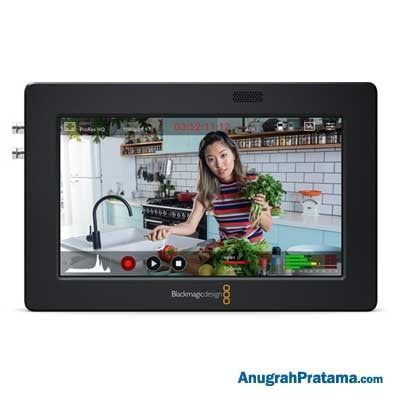

BLACKMAGIC DESIGN Blackmagic Video Assist 5 Inch 3G

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN Blackmagic Video Assist 5 Inch 3G

Spesifikasi:

Connections

• SDI Video Inputs : 1x Micro BNC
• SDI Video Outputs : 1x Micro BNC
• SDI Rates : 270Mb, 1.5G, 3G
• HDMI Video Inputs : 1
• HDMI Video Outputs : 1
• Analog Audio Inputs : None, embedded audio only
• Analog Audio Outputs : 1x 3.5mm headphone jack
• Built in Speaker : Mono
• Screen Dimensions : 5 inch 1920 x 1080
• Screen Brightness : 300nits
• SDI Audio Inputs : 16 channels embedded via SDI
• SDI Audio Outputs : 16 channels embedded via SDI
• HDMI Audio Inputs : 8 channels embedded via HDMI
• HDMI Audio Outputs : 8 channels embedded via HDMI
• Remote Control : None
• SD Interface : 1x UHS-I SD slot
• Storage Type : SDXC UHS-I and SDHC UHS-I SD cards (Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards)
• Computer Interface : 1x USB Type-C for webcam out, initial setup, software updates and Video Assist Utility software control

Standards

• SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M
• SDI Metadata Support : HD RP188
• Audio Sampling : Television standard sample rate of 48 kHz and 24-bit
• Video Sampling : 4:2:2 YUV
• Color Precision : 10-bit
• Color Space : REC 601, REC 709
• Multiple Rate Support : SDI and HDMI switches between 270 Mb/s, 1.5 Gb/s and 3 Gb/s

HDMI Video Standards

• HDMI Color Precision : 10-bit
• Copy Protection : HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content

Media

• Media : 1x UHS-I SD for HD recording
• Media Type : SDXC UHS-I and SDHC UHS-I SD cards

Supported Codecs

• ProRes 422 HQ, ProRes 422, ProRes 422 LT, ProRes 422 Proxy, DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF

Control

• Recorder Control : Integrated capacitive touchscreen LCD with Blackmagic OS onscreen controls for settings and navigating menus
• External Control : SDI and HDMI start/stop, timecode run

Scopes

• Scopes : Waveform, RGB Parade, Vector, Histogram
• Viewing Modes : Scopes with picture in picture or picture overlay and opacity control

Software

• Software Included : Blackmagic OS

Operating Systems

• Mac 10.14 Mojave, Mac 10.15 Catalina or later
• Windows 8.1 and 10

Power Requirements

• Power Supply : 1x External 12V power supply, Compatible with Sony NP-F style batteries (batteries not included)

Garansi produk: 12 Month Limited Manufacturer? Warranty
