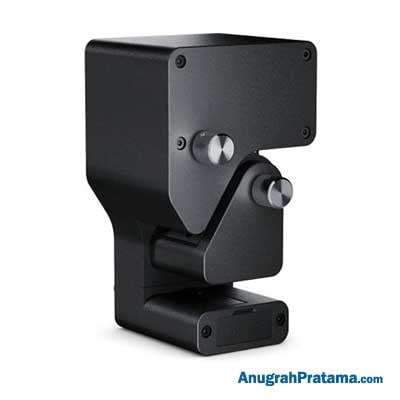

BLACKMAGIC DESIGN Cintel Audio and KeyKode Reader

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN Cintel Audio and KeyKode Reader

Spesifikasi:

Features

• Equalisation : Optical audio SMPTE, Magnetic audio IEC
• Supported KeyKode Scan Speeds : All scanner speeds
• LED Type : Optical audio and KeyKode Deep RED
• Supported Audio Scan Speeds : 6fps-125% chosen film rate (24fps film frame rate has a 30fps maximum scan speed and 16mm film has a 12fps lower limit)
• Supported Optical Audio Types : Variable Area, Variable Density
• Audio Sampling Rate and Bit Depth : 48kHz 24 bit PCM WAV file
• Full Modulation Level : -18dBFS
• Headphones Level : -18dBu at 50O load (for monitoring purposes only)

Optical Audio 35mm

• Bandwidth : 40Hz-16kHz +/-2dB
• SnR Signal to Noise Ratio : Transparent film base -65dB (measured with flat weighting)
• Wow and Flutter : < 0.15% (measured with IEC 386 weighting)

Optical Audio 16mm

• Bandwidth : 40Hz-7kHz +/-2dB
• SnR Signal to Noise Ratio : Transparent film base -65dB (measured with flat weighting)
• Wow and Flutter : < 0.3% (measured with IEC 386 weighting)

Magnetic Audio

• Engagement Pressure : 15 grams
• Bandwidth : 32Hz-14kHz +/-2dB
• SnR Signal to Noise Ratio : -55dB (measured with flat weighting)
• Wow and Flutter : < 0.3% (measured with IEC 386 weighting)

Power Requirements

• Power Consumption : Voltage 12V. Power 10W

Connections

• Preview Audio Output : 3.5mm stereo headphone jack
• Audio Connection : XLR6
• Computer Interface : USB Type-C for software updates

Garansi produk: 12 Month Limited Manufacturer’s Warranty
