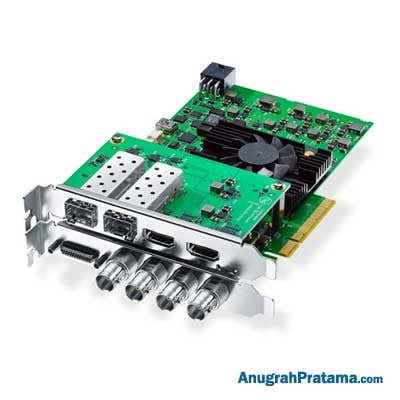

BLACKMAGIC DESIGN DeckLink 4K Extreme 12G

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN DeckLink 4K Extreme 12G

Spesifikasi:

Connections

• SDI Video Inputs : 2x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable
• SDI Video Outputs : 2x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable
• Analog Video Inputs : 1 x Component YUV on 3 BNCs switchable to S-Video or Composite. Component supports HD and SD
• Analog Video Outputs : 1 x Component YUV on 3 BNCs switchable to S-Video and Composite. Component supports HD and SD
• Analog Audio Inputs : 2 Channels of professional balanced analog audio via XLR connectors
• Analog Audio Outputs : 2 Channels of professional balanced analog audio via XLR connectors
• Optical Fiber Inputs/Outputs (Optional) : 2 x 12Gb/s Optical Fiber
• AES/EBU Audio Inputs : 2 Channels unbalanced with sample rate converter
• AES/EBU Audio Outputs : 2 Channels unbalanced
• SDI Audio Inputs : 16 Channels embedded in SD/HD/2K/4K
• SDI Audio Outputs : 16 Channels embedded in SD/HD/2K/4K
• HDMI Video Inputs : HDMI type A connector with support for 2160p60
• HDMI Video Outputs : HDMI type A connector with support for 2160p60
• HDMI Audio Inputs : 8 Channels embedded in SD/HD/4K
• HDMI Audio Outputs : 8 Channels embedded in SD/HD/4K
• Sync Input : Tri-Sync or Black Burst
• Device Control : Sony compatible RS422 deck control port. Serial ports TxRx direction reversible under software control
• Computer Interface : PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots with HDMI or SDI mezzanine card

Supported Codecs

• AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4

Software

• Software Included : DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux
• Internal Software Upgrade : Firmware built into software driver. Loaded at system start or via updater software
• Physical Installation : PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements

Software Applications

• DaVinci Resolve
• Fusion
• Final Cut Pro X
• Adobe Premiere Pro CC
• Avid Media Composer
• Adobe After Effects CC
• Avid Pro Tools
• Steinberg Cubase
• Autodesk Smoke
• Adobe Photoshop CC

Video Standards

• SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 435, SMPTE 2081, SMPTE 2082, SMPTE 2082-10, SMPTE 2108-1, ITU-R BT.656 and ITU-R BT.601
• Audio Sampling : Television standard sample rate of 48 kHz and 24 bit
• SDI Video Sampling : 4:2:2, 4:4:4
• Color Space : REC 601, REC 709, REC 2020
• HDR Support : HDR metadata packing, HLG and PQ transfer characteristics. (HDMI supports static HDR metadata only)
• HDMI Video Sampling : 4:4:4, 4:2:2 and 4:2:0
• HDMI Color Precision : 8, 10 and 12-bit (Deep Color)
• HDMI Configuration : HDMI 2.0b supports Deep Color and HDR. Automatically configures to connected display

Operating Systems

• Mac 11.1 Big Sur, Mac 12.0 Monterey or later
• Windows 10 64-bit, Windows 11
• Linux

Power Consumption

• 30 Watts

Garansi produk: 3 Year Limited Manufacturer’s Warranty
