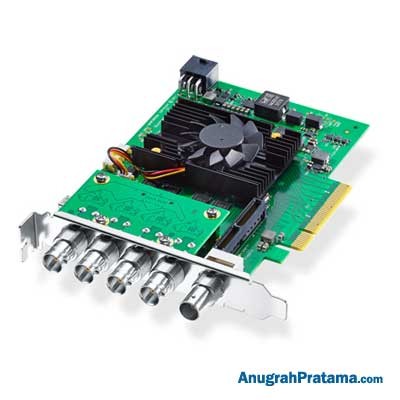

BLACKMAGIC DESIGN DeckLink 8K Pro

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN DeckLink 8K Pro

Spesifikasi:

Connections

• SDI Video Inputs : 4x bi-directional 12Gb/s SD/HD/2K/4K/8K. Supports single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable
• SDI Video Outputs : 4x bi-directional 12Gb/s SD/HD/2K/4K/8K. Supports single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable
• SDI Audio Inputs : 16 Channels embedded in SD/HD/2K & 64 Channels embedded in 4K/8K
• SDI Audio Outputs : 16 Channels embedded in SD/HD/2K. & 64 Channels embedded in 4K/8K
• Sync Input : Tri-Sync or Black Burst
• Computer Interface : PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots

Supported Codecs

• AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR and DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4

Software

• Software Included : DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux
• Internal Software Upgrade : Firmware built into software driver. Loaded at system start or via updater software
• Physical Installation : PCI Express 8 lane generation 3, compatible with 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Please check the Support pages to see the full system requirements

Software Applications

• DaVinci Resolve
• Fusion
• Final Cut Pro X
• Adobe Premiere Pro CC
• Avid Media Composer
• Adobe After Effects CC
• Avid Pro Tools
• Steinberg Cubase
• Autodesk Smoke
• Adobe Photoshop CC

Video Standards

• SDI Compliance : SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2036-1, SMPTE 2048-1, SMPTE 2081-10, SMPTE 2081-11, SMPTE 2081-12, SMPTE 2082-10, SMPTE 2082-11, SMPTE 2082-12 and SMPTE ST2108-1
• Audio Sampling : Television standard sample rate of 48 kHz and 24 bit
• SDI Video Sampling : 4:2:2, 4:4:4
• Color Space : REC 601, REC 709, REC 2020
• HDR Support : HDR static metadata packing, HLG and PQ transfer characteristics

Operating Systems

• Mac 11.1 Big Sur, Mac 12.0 Monterey or later
• Windows 10 64-bit, Windows 11
• Linux

Power Consumption

• 19 Watts

Garansi produk: 3 Year Limited Manufacturer’s Warranty
