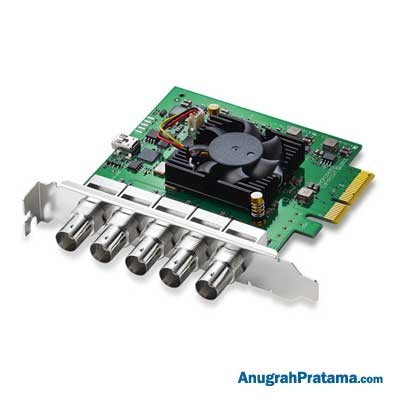

BLACKMAGIC DESIGN DeckLink Duo 2 Capture and Playback Card

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN DeckLink Duo 2 Capture and Playback Card

Spesifikasi:

Connections

• SDI Video Inputs : 4x bidirectional 12-bit SD/HD independently configurable as either Input or Output.
• SDI Video Outputs : 4x bidirectional 12-bit SD/HD independently configurable as either Input or Output.
• SDI Audio Inputs : 16 channels embedded in SD and HD.
• SDI Audio Outputs : 16 channels embedded in SD and HD.
  Sync Input : Tri-Sync or Black Burst.
• Computer Interface : PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.

Supported Codecs

• AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4

Software

• Software Included : Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
• Internal Software Upgrade : Firmware built into software driver. Loaded at system start or via updater software.
• Physical Installation : PCI Express 4 lane generation 2, compatible with 4 and 8 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.

Software Applications

• DaVinci Resolve
• Fusion
• Final Cut Pro X
• Adobe Premiere Pro CC
• Avid Media Composer
• Adobe After Effects CC
• Avid Pro Tools
• Steinberg Cubase
• Steinberg Nuendo
• Adobe Photoshop CC

Video Standards

• SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601.
• Audio Sampling : Television standard sample rate of 48 kHz and 24 bit.
• SDI Video Sampling : 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback.
• Color Space : REC 601, REC 709, REC 2020
• HDR Support : HDR static metadata packing, HLG and PQ transfer characteristics.

Operating Systems

• Mac 11.1 Big Sur, Mac 12.0 Monterey or later.
• Windows 10, 64-bit. Windows 11.
• Linux

Power Consumption

• 10 Watts

Garansi produk: 3 Year Limited
