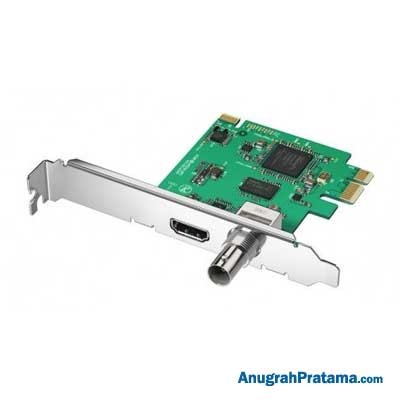

BLACKMAGIC DESIGN DeckLink Mini Monitor

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN DeckLink Mini Monitor

Spesifikasi:

Connections

• SDI Video Input : 1x 10-bit SD/HD switchable
• HDMI Video Input : 1x HDMI type A connector
• SDI Audio Input : 8 channels embedded in SD and HD
• HDMI Audio Input : 8 Channels embedded in SD and HD
• Computer Interface : PCI Express 1 lane, compatible with 1, 4, 8 and 16 lane PCIe slots

Supported Codecs

• Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2

Software

• Software Included : Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X and Windows
• Internal Software Upgrade : Firmware built into software driver. Loaded at system start or via updater software
• Physical Installation : PCI Express 1 lane, compatible with 1, 4, 8 and 16 lane PCI Express slots on Mac OS X, Windows 8 and Linux. Mac OS X systems require a Mac Pro computer. Please check the Support pages to see the full system requirements

Software Applications

• DaVinci Resolve
• Fusion 8
• Final Cut Pro X
• Premiere Pro CC
• Avid Media Composer
• After Effects CC
• Avid Pro Tools
• Steinberg Cubase
• Steinberg Nuendo
• Photoshop CC

Video Standards

• SD Format Support : 525i29.97 NTSC, 625i25 PAL
• HD Format Support 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
• SDI Compliance : SMPTE 259M and 292M
• Audio Sampling : Television standard sample rate of 48 kHz and 24 bit
• Video Sampling : 4:2:2
• Color Precision : 10-bit
• Color Space : REC 601, REC 709
• HDMI Configuration : HDMI automatically configures to connected display
• HDMI Resolution : Pixel for pixel HD resolution input to connected device
• HDMI Color Precision : 10-bit
• Multiple Rate support : SDI and HDMI are switchable between standard definitlon and high definition
• Colorspace Conversion : Hardware based real time
• HD Down Conversion : software based down conversion during video playback

Operating Systems

• Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later
• Windows 7, 8.1 and 10, all 64-bit
• Linux

Garansi produk: 3 Year Limited Manufacturer’s Warranty
