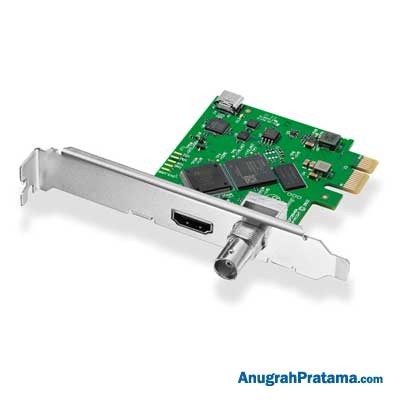

BLACKMAGIC DESIGN DeckLink Mini Monitor HD

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN DeckLink Mini Monitor HD

Spesifikasi:

Connections

• SDI Video Input : 1x 10-bit SD/HD switchable
• SDI Rates : 270Mb, 1.5G, 3G
• SDI Audio Output : 16 channels embedded in SD/HD
• HDMI Video Output : 1x HDMI 2.0 type A connector
• HDMI Audio Output : 8 channels embedded in SD/HD
• Computer Interface : PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots

Supported Codecs

• AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4

Software

• Software Included : Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux
• Internal Software Upgrade : Firmware built into software driver. Loaded at system start or via updater software
• Physical Installation : PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements

Software Applications

• DaVinci Resolve
• Fusion
• Final Cut Pro
• Adobe Premiere Pro CC
• Avid Media Composer
• Adobe After Effects CC
• Avid Pro Tools
• Steinberg Cubase
• Steinberg Nuendo
• Adobe Photoshop CC

SDI Video Standards

• SDI Video Standards : 525i59.94 NTSC, 625i50 PAL
• HD Video Standards : 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
• SDI Compliance : SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M A/B and SMPTE ST2108-1
• SDI Metadata Support : RP 188/SMPTE 12M-2 and closed captioning
• SDI Audio Sampling : Television standard sample rate of 48 kHz and 24-bit
• SDI Video Sampling : 4:2:2, 4:4:4
• SDI Color Precision : 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards
• SDI Color Space : REC 601, REC 709 and REC 2020
• SDI HDR Support : HDR metadata packing, HLG and PQ transfer characteristics

HDMI Video Standards

• SDI Video Standards : 525i59.94 NTSC, 625i50 PAL
• HD Video Standards : 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
• HDMI Audio Sampling : Television standard sample rate of 48 kHz and 24 bit
• HDMI Video Sampling : 4:2:2 and 4:4:4
• HDMI Color Precision : 10, 12-bit RGB 4:4:4 up to 1080p30, 8-bit RGB 4:4:4 and 12-bit YUV 4:2:2 in all standards
• HDMI Configuration : HDMI 2.0 supports Deep Color and HDR. Automatically configures to connected display
• HDMI Color Space : REC 601, REC 709 and REC 2020
• HDMI HDR Support : HDR metadata packing, HLG and PQ transfer characteristics

Operating Systems

• Mac 11.1 Big Sur, Mac 12.0 Monterey or later
• Windows 10 64-bit, Windows 11
• Linux

Power Consumption

• 3 Watts

Garansi produk: 3 Year Limited Manufacturer’s Warranty
