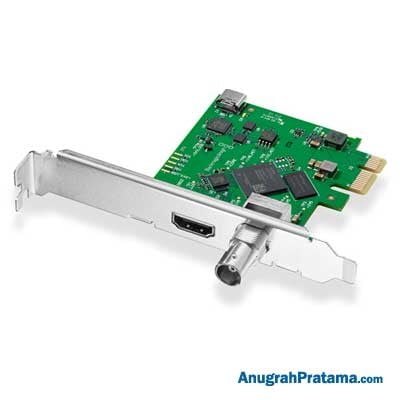

BLACKMAGIC DESIGN DeckLink Mini Recorder HD

Rp3.510.000

Broadcast-Quality Recording | 1-Lane PCIe Slot Card (for 1-16 Lanes) | SDI and HDMI Inputs | Supports up to 2K DCI over SDI | Up to 1080p60 Resolution Support in HDMI | 8-, 10-, 12-Bit Video, 4:2:2 / 4:4:4 | REC 601/709 Color Space Support | Mac, Windows, and Linux Compatible

Stok habis

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN DeckLink Mini Recorder HD

Spesifikasi:

Connections

  • SDI Video Input : 1x 10-bit SD/HD switchable
  • SDI Rates : 270Mb, 1.5G, 3G
  • SDI Audio Input : 16 channels embedded in SD/HD
  • HDMI Video Input : 1x HDMI 2.0 type A connector
  • HDMI Audio Input : 8 channels embedded in SD/HD
  • Computer Interface : PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots

Supported Codecs

  • AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4

Software

  • Software Included : Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux
  • Internal Software Upgrade : Firmware built into software driver. Loaded at system start or via updater software
  • Physical Installation : PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements

Software Applications

  • Wirecast
  • vMix
  • OBS

SDI Video Standards

  • SDI Video Standards : 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards : 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
  • SDI Compliance : SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M and SMPTE 425M A/B
  • SDI Metadata Support : RP 188/SMPTE 12M-2 and closed captioning
  • SDI Audio Sampling : Television standard sample rate of 48 kHz and 24-bit
  • SDI Video Sampling : 4:2:2, 4:4:4
  • SDI Color Precision : 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards
  • SDI Color Space : REC 601, REC 709 and REC 2020
  • Multiple Rate Support : SDI video connection is switchable between SD and HD

HDMI Video Standards

  • SDI Video Standards : 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards : 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
  • HDMI Audio Sampling : Television standard sample rate of 48 kHz and 24 bit
  • HDMI Video Sampling : 4:2:2 and 4:4:4
  • HDMI Color Precision : 8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards
  • HDMI Configuration : HDMI 2.0 supports Deep Color
  • HDMI Color Space : REC 601, REC 709 and REC 2020
  • Multiple Rate Support : HDMI video connection is switchable between SD and HD
  • Copy Protection : HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content

Operating Systems

  • Mac 11.1 Big Sur, Mac 12.0 Monterey or later
  • Windows 10 64-bit, Windows 11
  • Linux

Power Consumption

  • 3 Watts

Garansi produk: 3 Year Limited Manufacturer’s Warranty

Informasi Tambahan

Berat 1 kg
