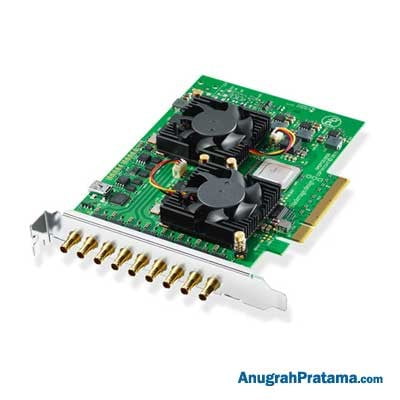

Anugrahpratama.com Jual BLACKMAGIC DESIGN DeckLink Quad 2
Spesifikasi:
Connections
- SDI Video Inputs : 8x bi-directional 12-bit SD/HD independently configurable as either Input or Output
- SDI Video Outputs : 8x bi-directional 12-bit SD/HD independently configurable as either Output or Input
- SDI Audio Inputs : 16 channels embedded in SD and HD
- SDI Audio Outputs : 16 channels embedded in SD and HD
- Sync Input : Tri-Sync or Black Burst
- Computer Interface : PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots
Supported Codecs
- AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4
Software
- Software Included : Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux
- Internal Software Upgrade : Firmware built into software driver. Loaded at system start or via updater software
- Physical Installation : PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements
Software Applications
- DaVinci Resolve
- Fusion
- Final Cut Pro X
- Adobe Premiere Pro CC
- Avid Media Composer
- Adobe After Effects CC
- Avid Pro Tools
- Steinberg Cubase
- Steinberg Nuendo
- Adobe Photoshop CC
Video Standards
- SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601
- Audio Sampling : Television standard sample rate of 48 kHz and 24 bit
- SDI Video Sampling : 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback
- Color Space : REC 601, REC 709, REC 2020
- HDR Support : HDR static metadata packing, HLG and PQ transfer characteristics
Operating Systems
- Mac 11.1 Big Sur, Mac 12.0 Monterey or later
- Windows 10 64-bit, Windows 11
- Linux
Power Consumption
Garansi produk: 3 Year Limited Manufacturer’s Warranty
