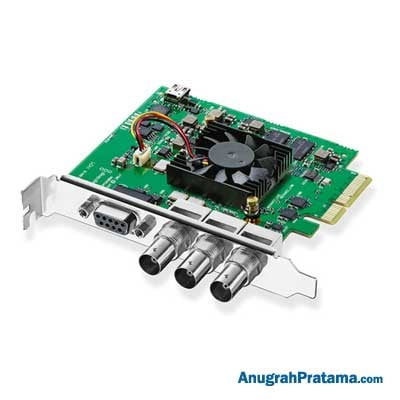

BLACKMAGIC DESIGN DeckLink SDI 4K

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN DeckLink SDI 4K

Spesifikasi:

Connections

• SDI Video Input : 1x 10-bit SD/HD/2K/4K. Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4
• SDI Video Outputs : 1x 10-bit SD/HD/2K/4K. Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4
• SDI Audio Inputs : 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD>/li>
• SDI Audio Outputs : 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD
• Sync Input : Tri-Sync or Black Burst
• Device Control : Sony compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control
• Computer Interface : PCI Express 4 lane generation 2, compatible with 4,8 and 16 lane PCI Express slots

Supported Codecs

• AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10 bit 4:4:4

Software

• Software Included : Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux
• Internal Software Upgrade : Firmware built into software driver. Loaded at system start or via updater software
• Physical Installation : PCI Express 4 lane generation 2, compatible with 4, 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Please check the Support pages to see the full system requirements

Software Applications

• DaVinci Resolve
• Fusion
• Final Cut Pro X
• Adobe Premiere Pro CC
• Avid Media Composer
• Adobe After Effects CC
• Avid Pro Tools
• Steinberg Cubase
• Autodesk Smoke
• Adobe Photoshop CC

Video Standards

• SD Video Standards : 525i59.94 NTSC, 625i50 PAL
• HD Video Standards : 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
• 2K Video Standards (SDI ONLY) : 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
• Ultra HD Video Standards : 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
• 4K Video Standards : 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
• SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601
• Color Space : REC 601, REC 709
• SDI Metadata Support : RP 188/SMPTE 12M-2 and closed captioning
• Audio Sampling : Television standard sample rate of 48 kHz at 24 bit
• Video Sampling : 4:2:2 and 4:4:4 (4K is 4:2:2)
• Color Precision : 10-bit
• Multiple Rate Support : SDI video connections are switchable between SD/HD/2K and UHD

Operating Systems

• Mac 11.1 Big Sur, Mac 12.0 Monterey or later
• Windows 10 64-bit, Windows 11
• Linux

Power Consumption

• 11 Watts

Garansi produk: 3 Year Limited Manufacturer’s Warranty
