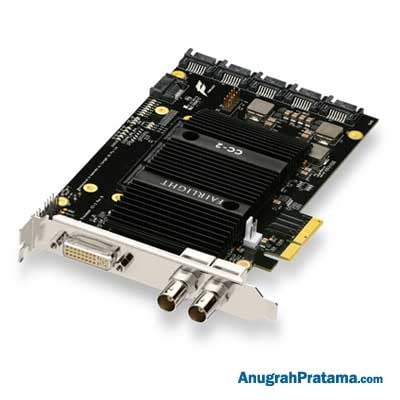

BLACKMAGIC DESIGN Fairlight Audio Accelerator

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN Fairlight Audio Accelerator

Spesifikasi:

Connections

• MADI Inputs : 1x MADI input via 75 ohm BNC
• MADI Outputs : 1x MADI output via 75 ohm BNC
• MADI Expansion : Supports Fairlight Audio MADI Upgrade via SATA connectors 1, 2 and 3
• I/O Expansion : Supports Fairlight Audio Interface via multi-pin connector on shield
• PCI Form Factor : Single half length PCIe x4 board

Product Specifics

• Sampling : 44.1, 48, 96 and 192 KHz with minimum 32 bit floating point processing
• Channel Structure : Verified using Mac Pro 7,1 with Intel CPU
• Core Audio : Track count organized from mono to 26.0, 2000 Mono Audio Tracks at 48kHz, 1000 Mono Audio Tracks at 96kHz, 500 Mono Audio Tracks at 192kHz
• Total Busses : 256 Busses plus 512 Bus elements at 48kHz, 256 Busses plus 256 Bus elements at 96kHz, 256 Busses plus 128 Bus elements at 192kHz
• Record Channels : 128 at 48kHz, 64 at 96kHz, 32 at 192kHz
• Additional Record Channels : When used with Core Audio plus Fairlight Accelerator (256 at 48kHz, 128 at 96kHz, 64 at 192kHz)

Channel Facilities

• Elastic wave time warping and sample rate conversion
• Six band EQ
• Expander/gate, compressor and limiter
• Up to six Resolve, VST or AU plugins
• Direct out
• Four band clip based EQ
• Up to six Resolve, VST or AU clip based plugins
• Mono, stereo, 5.1, 7.1 up to 26.0 and other 3D channel formats
• In place solo
• Up to 16 VCA groups

FlexBus Structure

• Up to 512 mono bus elements, organized in any format from mono to 26.0
• Mono, stereo, 5.1, 7.1 up to 26.0 and other 3D bus formats
• Up to 10 bus sends per channel and bus with independent level control
• Up to 10 post fader bus sends per channel and bus
• Automatic and flexible delay compensation

Bus Facilities

• Four band EQ
• Compressor and limiter
• Up to six Resolve, VST or AU pre fader plugins
• Direct out

Plug-ins

• Up to six Resolve, VST or AU plug-ins on any channel or bus
• Tactile control of plug-ins from the Fairlight audio editor
• Plug-ins are fully controllable with automation

Monitoring

• Up to four simultaneous sources
• Source from internal buses or external inputs
• Up to 16 different speaker sets
• Customizable fold up and fold down when crossing formats
• Optional B-Chain processor for cinematic setups with up to 64 speakers

Operating Systems

• Mac 10.15 Catalina or later, not including Apple silicon systems
• Windows 10 64-bit

Power Requirements

• Power Usage : 14W

Garansi produk: 1 Year Limited Manufacturer’s Warranty
