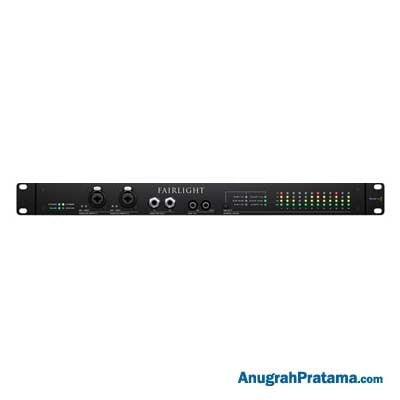

BLACKMAGIC DESIGN Fairlight Audio Interface

Rp64.513.800

For Postproduction Engineers | Proprietary Fairlight Host Connectivity | Inputs: 2 Mic/Hi-Z Pres, 8 Line, 20 AES | Outputs: 12 Line, 24 AES | 24-Bit / 192 kHz AD/DA Converters | Internal Power Supply / Mac and Windows | Phantom Power, Timecode and GPIO In/Out | BNC Wordclock and Video Sync I/O | RS-422 Machine Control I/O | Multi-Segment Level Indicators

Stok habis

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN Fairlight Audio Interface

Spesifikasi:

Connections

  • Analog Audio Inputs : 2x remote controlled XLR/TRS microphone inputs with 48v phantom power / instrument preamps, 8x +24dBu balanced analog inputs
  • Analog Audio Outputs : 12x +24dBu balanced analog outputs with mute protection
  • Digital Audio Inputs : 9x fully transformer coupled AES stereo digital inputs, 1x S/PDIF input with sample-rate conversion
  • Digital Audio Outputs : 11x AES stereo digital outputs, 1x stereo digital S/PDIF output, Standard 25pin Tascam interface for Analog and AES looms
  • Sync Input : 1x 75 ohm BNC Reference input. Tri-Sync or Black Burst, 1x 75 ohm BNC word clock input
  • Sync Output : 1x 75 ohm BNC Reference loop out. Tri-Sync or Black Burst, 1x 75 ohm BNC word clock regenerated output, Sync to all common frame rates and formats including HD Tri-level sync, video sync, word-clock and AES/EBU
  • Device Control : 1x RS-422 9-pin machine control input, 1x RS-422 9-pin machine control output
  • Timecode : Timecode input and output with regeneration
  • MIDI : For future use
  • GPIO : GPI and GPO connections for cough and ?n-Air?control

Product Specifics

  • Sample Rate : 44.1, 48, 96, 192 kHz
  • Max Input : Inputs 1-2 (mic): +2.5dBu ; Inputs 1-2 (instrument): +24dBu ; Inputs 3-10 (Line): +24dBu
  • Gain Range : Inputs 1-2: Mic Inputs: 50dB gain range (+21.5 to +71.5dB) ; Inputs 1-2 : Instrument Setting: 50dB gain range (+0 to +50dB)
  • Mic E.I.N (unweighted) : Inputs 1-2: -127dBu @40dB (61.5dB) ; Gain: 150 ohm source, 20Hz – 20kHz THD+N (mic input) ; Inputs 1-2: <0.001%@ 1kHz, -1 dBFS at 0dB gain ; Inputs 1-2: <0.004% @ 1kHz, -1 dBFS at 40dB (61.5dB) gain
  • THD+N (line input) : Inputs 1-2: <0.001% @ 1kHz, -1 dBFS after 0dB gain (unweighted) ; Inputs 3-10 : <0.001 % @ 1 kHz (unweighted)
  • Dynamic Range (line input) : Inputs 1-2 : 108dB @ 0dB gain (unweighted) ; Inputs 3-10: 110dB (unweighted)
  • Input Frequency Response : +0.05/-0.05dB, 20Hz – 20kHz
  • Input Impedance : Inputs 1-2 (XLR) : 2k ohm ; Inputs 1-2 (1/4 inch): >1M ohm ; Inputs 3-10: 15k ohm
  • Max Output : Outputs 1-12: +24 dBu
  • THD+N (Line Outputs) : Outputs 1-12: <0.002%
  • Dynamic Range (Line Output) : Outputs 1-12 : 109 dB (unweighted)
  • Output Frequency Response : +0.05/-0.5dB, 20Hz – 20kHz
  • Output Impedance : Outputs 1-12 : 50 ohms

Operating Systems

  • Mac 10.15 Catalina or later, not including Apple silicon systems
  • Windows 10 64-bit

Power Requirements

  • Power Supply : Internal 100 – 240V AC 50/60Hz with IEC C14 mains input
  • Power Usage : 40W
  • Power Management : Automatically powered-on/off only when the Fairlight Audio Accelerator is powered on

Garansi produk: 1 Year Limited Manufacturer’s Warranty

Informasi Tambahan

Berat 5 kg

Brand

BLACKMAGIC DESIGN
