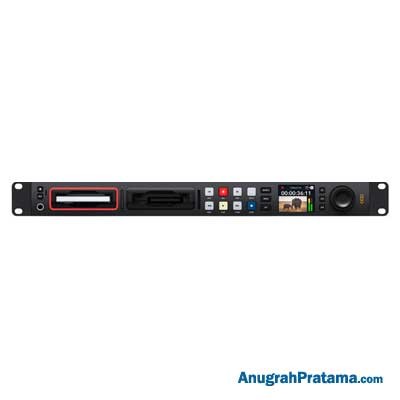

BLACKMAGIC DESIGN HyperDeck Studio HD Pro

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN HyperDeck Studio HD Pro

Spesifikasi:

Connections

• SDI Video Inputs : 1
• SDI Video Outputs : 2
• SDI Monitor Outputs : 1
• SDI Rates : 270Mb, 1.5G, 3G, 6G
• HDMI 2.0 Video Inputs : 1
• HDMI 2.0 Video Outputs : 1
• Built in Speaker : Mono
• Audio Output : 1x 6.35 mm headphone jack
• Screen : 2.2 inch LCD
• Timecode Connections : 1x XLR In, 1x XLR Out
• Reference Connections : 1x BNC In, 1x BNC Out, Tri-Sync or Black Burst
• SDI Audio Inputs : 16 channels embedded audio
• SDI Audio Outputs : 16 channels embedded audio
• HDMI Audio Inputs : 8 channels embedded audio
• HDMI Audio Outputs : 8 channels embedded audio
• Remote Control : 1x RS-422 In, 1 x RS-422 Out
• Recorder Configuration : Via user interface or Blackmagic HyperDeck Ethernet Protocol
• Ethernet : 1Gb/s
• Computer Interface : 1x USB Type-C 3.0 (up to 5Gb/s) for external drive recording, webcam out, software configuration and updates

Standards

• SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2084 and SMPTE 2108-1
• SDI Metadata Support : HD RP188 and closed captioning CEA-708. HDR Metadata supported on SDI
• Audio Sampling : Television standard 24-bit, 48 kHz sample rate
• Video Sampling : 4:2:2 YUV
• Color Precision : 10-bit
• Color Space : REC 601, REC 709, REC 2020, 33 point 3D LUTS can be applied to SDI monitor out
• HDR Support : Hybrid Log-Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
• Multi Rate Support : Auto detection of SD, HD and 6G-SDI
• Copy Protection : HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content

Media

• Media : 2x 2.5 inch disc slots, 2x SD card slots, 1x USB-C 3.0 expansion port for external recording of SD, HD,
  2K DCI, Ultra HD and 4K DCI
• Media Type : SATA-II or SATA-III 2.5 inch solid state media, UHS-I and UHS-II SD cards
• Media Format : Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems

Supported Codecs

• ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p30. Playback only of ProRes 4444 QuickTime up to 1080p60 with auto routing of fill and key over SDI A and B outputs. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 30fps. H.264 SDI 4:2:2 10-bit, H.264 High 4:2:0 8-bit, H.264 Medium 4:2:0 8-bit, H.264 Low 4:2:0 8-bit for all formats up to 1080p60.

Control

• Built in Control Panel : 16 buttons for transport and device control with search dial featuring electronic clutch and 2.2 inch color display
• External Control : RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP file upload

Software

• Software Included : Blackmagic OS, Blackmagic HyperDeck Setup, Internal Software Upgrade Loaded at system start,
  or via Blackmagic HyperDeck Setup using USB port

Operating Systems

• Mac 11.1 Big Sur, Mac 12.0 Monterey or later
• Windows 10 and 11

Displays

• Built in 2.2 inch LCD for video, audio and timecode monitoring and menu settings, LED bezel indicator lights around SSD media slots and LED indicator lights above the SD media slots

Power Requirements

• Power Supply : 1x Internal 100 – 240V AC 50/60Hz, 1x 4 pin XLR 12V DC In for external power supply or battery use
• Power Usage : 100W max

Garansi produk: 12 Month Limited Manufacturer’s Warranty
