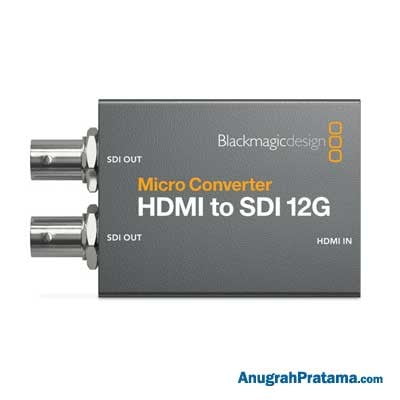

BLACKMAGIC DESIGN Micro Converter HDMI to SDI 12G with PSU

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN Micro Converter HDMI to SDI 12G with PSU

Spesifikasi:

Connections

• SDI Video Outputs : 2 (Automatically matches the HDMI input)
• HDMI 2.0 Video Outputs : 1x type A
• SDI Rates : 270Mb, 1.5G, 3G, 6G, 12G
• Multi Rate Support : Auto detection of SD, HD, 2K, Ultra HD and 4K
• Updates, Configurations and Power : USB Type-C
• Reclocking : Yes

Standards

• SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1
• SDI Video Rates : SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI
• SDI Color Precision : 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color
• SDI Color Space : YUV
• SDI Auto Switching : Automatically detects SD, HD, Ultra HD and 4K DCI. Level A and B is user selectable on output for 3G-SDI
• HDMI Color Precision : 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color
• HDMI Color Space : YUV

Copy Protection

• HDMI input is unable to capture from copy protected HDMI sources
• Always confirm copyright ownership before capture or distribution of content

Settings Control

• Via MacOS and Windows software utility connected by USB

Operating Systems

• Mac 10.15 Catalina, Mac 11.1 Big Sur or later
• Windows 10 64-bit

Software

• Internal software upgrade via USB

Power Requirements

• Power Supply : +5V universal power supply included with international socket adapters for most countries
• Power Consumption : 4W Max
• Operational Voltage Range : 4.4V to 5.25V DC

Garansi produk: 3 Year Limited Manufacturer’s Warranty
