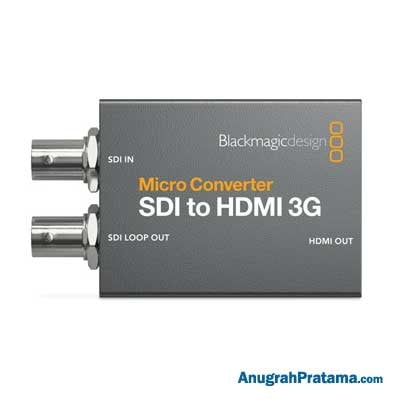

BLACKMAGIC DESIGN Micro Converter SDI to HDMI 3G

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN Micro Converter SDI to HDMI 3G

Spesifikasi:

Connections

• SDI Video Inputs : 1x SD, HD or 3G-SDI
• SDI Video Outputs : 1x SDI loop out
• HDMI Outputs : HDMI Type A out
• Multi Rate Support : Auto detection of SD or HD
• Updates, Configurations and Power : USB Type-C

Standards

• SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
• SDI Video Rates : SDI video connections are switchable between standard definition, 720p, 1080i, 1080p and DCI high definition
• SDI Color Precision : 4:2:2
• SDI Color Space : YUV
• SDI Auto Switching : Automatically detects SD, HD and level A or B for 3G-SDI
• HDMI Color Precision : 4:2:2. A 17 point LUT can be loaded via the software utility for calibrating or improving monitor color
• HDMI Color Space : YUV

Settings Control

• Via MacOS and Windows software utility connected by USB

Operating Systems

• Mac 10.15 Catalina, Mac 11.1 Big Sur or later
• Windows 10 64-bit

Software

• Internal software upgrade via USB

Power Requirements

• Power Consumption : 1.6W Max
• Operational Voltage Range : 4.4V to 5.25V DC

Garansi produk: 3 Year Limited Manufacturer’s Warranty
