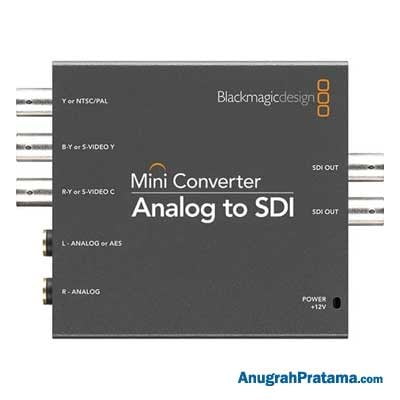

BLACKMAGIC DESIGN Mini Converter Analog to SDI 2

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN Mini Converter Analog to SDI 2

Spesifikasi:

Connections

• SDI Video Output : Automatically matches the SD and HD video input
• Analog Audio : 2 channels of professional balanced analog audio with standard 1/4 inch jack connections
• Analog Video : Component SD/HD, NTSC, PAL and S-Video
• AES/EBU Digital Audio : 2 channels of professional balanced digital with standard 1/4 inch jack connections
• Multi Rate Support : Auto detection of HD or standard definition inputs
• Updates and Configuration : USB
• Reclocking : Yes

Standards

• SDI Compliance : SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 424M-?-B, ITU-R BT.656 and ITU-R BT.601
• SDI Video Rates : SDI video connections are switchable between standard definition and high definition
• SDI Video Sampling : 4:2:2
• SDI Audio Sampling : Television standard sample rate of 48 kHz and 24 bit
• SDI Color Precision : 4:2:2
• SDI Color Space : YUV
• SDI Auto Switching : Automatically follows format of analog input
• SDI Format Support : 525i23.98 NTSC, 525i29.97 NTSC, 625i25 PAL 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60
• Analog Format Support : 525i23.98 NTSC, 525i29.97 NTSC, 625i25 PAL 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60
• Analog Color Space : YUV
• Analog Color Precision : 4:2:2

Settings Control

• Mini Switches or USB software
• Mac OS X and Windows software upgrade via USB

Operating Systems

• Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later
• Windows 8.1 or Windows 10

Software

• Via included updater application

Power Requirements

• Power Supply : +12V universal power supply included with international socket adapters for all countries. Cable tie point
• Power Consumption : 6.50W
• Operational Voltage Range : 12 – 31V DC

Garansi produk: 3 Year Limited Manufacturer’s Warranty
