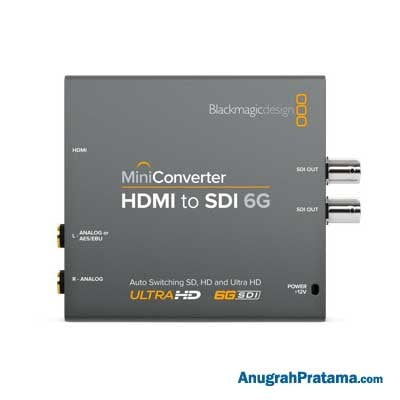

BLACKMAGIC DESIGN Mini Converter HDMI to SDI 6G

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN Mini Converter HDMI to SDI 6G

Spesifikasi:

Connections

• SDI Video Outputs : 2x SDI Video Outputs. Automatically matches the SD, HD and 6G-SDI HDMI video input
• HDMI Video Inputs : HDMI type A in
• Analog Audio Inputs : 2 channels of professional balanced analog audio with standard 1/4 inch jack connections
• Digital Audio Inputs : 4 channels of AES/EBU digital audio
• Multi Rate Support : Auto detection of SD, HD or 6G-SDI
• Updates and Configuration : USB
• Reclocking : Yes

Standards

• SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE ST-2081, ITU-R BT.656 and ITU-R BT.601
• SDI Video Rates : SDI video inputs are automatically detected between standard definition, high definition, 3G-SDI and 6G-SDI. HDMI to SDI 6G supports level B only on 3G-SDI output
• SDI Video Sampling : 4:2:2
• SDI Audio Sampling : Television standard sample rate of 48 kHz and 24 bit
• SDI Color Precision : 4:2:2
• SDI Color Space : YUV
• SDI Auto Switching : Automatically detects SD, HD or 6G-SDI
• HDMI Color Space : YUV and RGB
• HDMI Color Precision : 4:2:2 and 4:4:4
• Copy Protection : HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content

Format Conversion

• HD down converter

Operating Systems

• Mac 10.15 Catalina, Mac 11.1 Big Sur or later
• Windows 10 64-bit

Software

• Software Control : Mac and Windows software upgrade via USB
• Internal Software Upgrade : Via included updater application

Settings Control

• Mini Switches or USB software

Power Requirements

• Power Supply : +12V universal power supply included with international socket adapters for all countries. Cable tie point
• Power Consumption : 4.44W
• Operational Voltage Range : 12 – 18V DC

Garansi produk: 3 Year Limited Manufacturer’s Warranty
