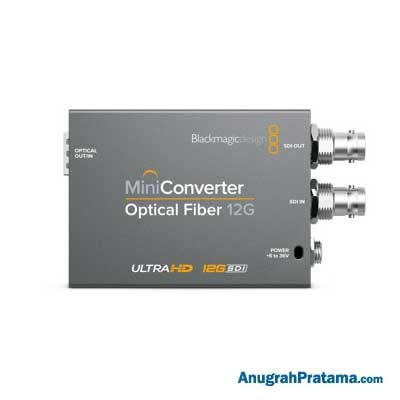

BLACKMAGIC DESIGN Mini Converter Optical Fiber 12G

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN Mini Converter Optical Fiber 12G

Spesifikasi:

Connections

• SDI Video Inputs : 1x SD, HD and 12G-SDI Video and 1 x Optical Fiber Input
• SDI Video Outputs : Automatically matches the SD, HD and 12G-SDI video input on the Optical Fiber
• Optical Fiber Connection (optional) : 1x SMPTE optical fiber SFP socket (Optical fiber SFP module sold separately)
• Optical Fiber Video Inputs : 1x 10 bit SD/HD/12G-SDI switchable
• Optical Fiber Video Outputs : Automatically matches the SD, HD and 12G-SDI video input
• Optical Fiber Audio Inputs : 16 channel embedded
• Optical Fiber Audio Outputs : 16 channel embedded
• Multi Rate Support : Auto detection of SD, HD or 12G-SDI
• Reclocking : Yes

Standards

• SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE, SMPTE ST-2081, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI
• SDI Video Rates : SDI video inputs are automatically detected between standard definition, high definition, level A or level B 3G-SDI, 6G-SDI and 12G-SDI
• SDI Video Sampling : 4:2:2 and 4:4:4
• SDI Audio Sampling : Television standard sample rate of 48 kHz and 24 bit
• SDI Color Precision : 4:2:2 and 4:4:4
• SDI Color Space : YUV and RGB
• SDI Auto Switching : Automatically detects SD, HD or 12G-SDI
• ASI Support : Yes

Operating Systems

• Mac 10.15 Catalina, Mac 11.1 Big Sur or later
• Windows 10 64-bit

Power Requirements

• Power Supply : +12V universal power supply included with international socket adapters for all countries. Cable tie point
• Power Consumption : 2W
• Operational Voltage Range : 6 – 36V DC

Garansi produk: 3 Year Limited Manufacturer’s Warranty
