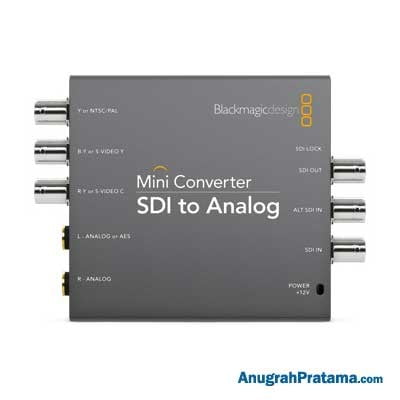

BLACKMAGIC DESIGN Mini Converter SDI to Analog

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN Mini Converter SDI to Analog

Spesifikasi:

Connections

• SDI Video Inputs : 1x SD, HD or 1.5G-SDI. 1 x ALT SDI Input for automatic switch over if main input fails
• SDI Video Outputs : 1x SDI Loop Output
• SDI Rates : 270Mb, 1.5G
• Analog Video Outputs : NTSC, PAL, S-Video and component SD/HD from 1.5G-SDI input
• Analog Audio Outputs : 2 channels of professional balanced analog audio with standard 1/4 inch jack connections
• Digital Audio Outputs : 2 channels of balanced AES/EBU audio
• SDI Redundant Input : Automatically switches over if main SDI input is lost
• Multi Rate Support : Auto detection of SD, HD or 1.5G-SDI
• Updates and Configuration : USB
• Reclocking : Yes

Standards

• SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M level B, SMPTE 425M level B, ITU-R BT.656 and ITU-R BT.601
• SDI Video Rates : SDI video inputs are automatically detected between standard definition, high definition and level B 3G-SDI
• SDI Video Sampling : 4:2:2
• SDI Audio Sampling : Television standard sample rate of 48 kHz and 24 bit
• SDI Color Precision : 4:2:2
• SDI Color Space : YUV
• SDI Auto Switching : Auto detection of SD, HD or 3G-SDI
• Analog Color Space : YUV
• Analog Color Precision : 4:2:2

Format Conversion

• HD to SD down converter

Operating Systems

• Mac 10.15 Catalina, Mac 11.1 Big Sur or later
• Windows 10 64-bit

Software

• Software Control : Mac and Windows software upgrade via USB
• Internal Software Upgrade : Via included updater application

Settings Control

• Mini Switches or USB software

Power Requirements

• Power Supply : +12V universal power supply included with international socket adapters for all countries. Cable tie point
• Power Consumption : 8.04W
• Operational Voltage Range : 12 – 15V DC

Garansi produk: 3 Year Limited Manufacturer’s Warranty

Informasi Tambahan

Brand
