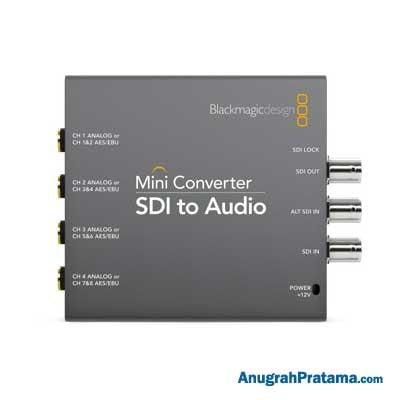

Anugrahpratama.com Jual BLACKMAGIC DESIGN Mini Converter SDI to Audio
Spesifikasi:
Connections
- SDI Video Inputs : 1x SD, HD or 3G-SDI. 1 x ALT SDI Input for automatic switch over if main input fails
- SDI Video Outputs : 1x SDI Loop Output
- Analog Audio Outputs : 4 channels of professional balanced analog audio
- Digital Audio Outputs : 8 channels of professional balanced AES/EBU audio
- SDI Redundant Inputs : Automatically switches over if main SDI input is lost
- Multi Rate Support : Auto detection of SD, HD or 3G-SDI
- Updates and Configuration : Via USB 2.0 high speed. (480 Mb/s)
- Reclocking : Yes
Standards
- SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M level B, SMPTE 425M level B, ITU-R BT.656 and ITU-R BT.601
- SDI Video Rates : SDI video inputs are automatically detected between standard definition, high definition and level B 3G-SDI
- SDI Video Sampling : 4:2:2 and 4:4:4
- SDI Audio Sampling : Television standard sample rate of 48 kHz and 24 bit
- SDI Color Precision : 4:2:2 and 4:4:4
- SDI Color Space : YUV and RGB
- SDI Auto Switching : Automatically selects between SD, HD, and 3G-SDI
Operating Systems
- Mac 10.15 Catalina, Mac 11.1 Big Sur or later
- Windows 10 64-bit
Software
- Software Control : Mac and Windows software upgrade via USB
- Internal Software Upgrade : Via included updater application
Settings Control
- Mini Switches or USB software
Power Requirements
- Power Supply : +12V universal power supply included with international socket adapters for all countries. Cable tie point
- Power Consumption : 5.52W
- Operational Voltage Range : 12 – 15V DC
Garansi produk: 3 Year Limited Manufacturer’s Warranty
