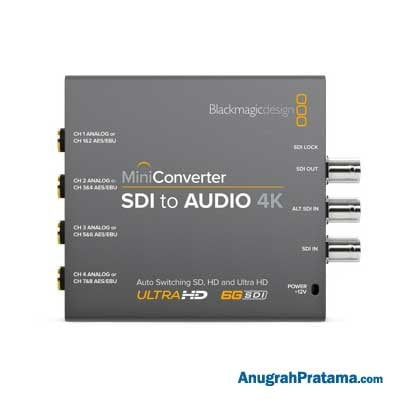

BLACKMAGIC DESIGN Mini Converter SDI to Audio 4K

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN Mini Converter SDI to Audio 4K

Spesifikasi:

Connections

• SDI Video Inputs : 1x SD, HD or 6G-SDI ; 1x ALT SDI Input for automatic switch over if main input fails
• SDI Video Outputs : 1x SDI Video Loop Output
• SDI Redundant Inputs : Automatically switches over if main SDI input is lost
• Analog Audio Outputs : 4 channels of professional balanced analog audio with standard 1/4 inch jack connections
• Digital Audio Outputs : 8 channels of professional balanced digital with standard 1/4 inch jack connections
• Multi Rate Support : Auto detection SD, HD or 6G-SDI
• Updates and Configuration : USB
• Reclocking : Yes

Standards

• SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE ST-2081, ITU-R BT.656 and ITU-R BT.601
• SDI Video Rates : SDI video inputs are automatically detected between standard definition and high definition
• SDI Video Sampling : 4:2:2 and 4:4:4
• SDI Audio Sampling : Television standard sample rate of 48 kHz and 24 bit
• SDI Color Precision : 4:2:2 and 4:4:4
• SDI Color Space : YUV and RGB
• SDI Auto Switching : Automatically selects between SD, HD, 3G and 6G-SDI

Operating Systems

• Mac 10.15 Catalina, Mac 11.1 Big Sur or later
• Windows 10 64-bit

Software

• Software Control : Mac and Windows software upgrade via USB
• Internal Software Upgrade : Via included updater application

Settings Control

• Mini Switches or USB software

Power Requirements

• Power Supply : +12V universal power supply included with international socket adapters for all countries. Cable tie point
• Power Consumption : 5.52W
• Operational Voltage Range : 12 – 31V DC

Garansi produk: 3 Year Limited Manufacturer’s Warranty
