Deskripsi

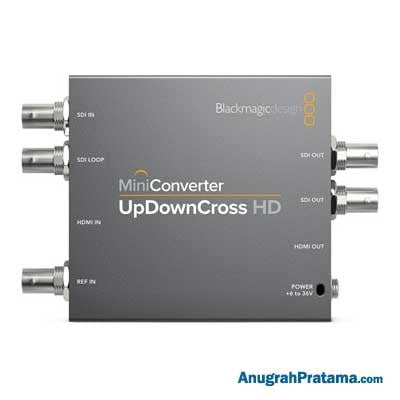

Anugrahpratama.com Jual BLACKMAGIC DESIGN Mini Converter UpDownCross HD
Spesifikasi:
Connections
- SDI Video Inputs : 1x SD, HD or 3G-SDI Video Input and 1 x External Reference Input
- HDMI Video Input : 1x HDMI type A connector
- SDI Video Outputs : 1x loop out and 2 x outputs
- HDMI Video Output : HDMI type A out. Output supports EDID of the monitor
- SDI Rates : 270Mb, 1.5G, 3G
- Reference Input : Black burst and Tri-Sync for SD & HD
- Multi Rate Support : Auto detection of HD or standard definition SDI inputs
- Updates and Configuration : USB
- Reclocking : Yes
Standards
- SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M level B, SMPTE 425M level B, ITU-R BT.656 and ITU-R BT.601
- SDI Video Rates : SDI video inputs are automatically detected between standard definition, high definition and level B 3G-SDI
- SDI Metadata Support : Timecode and closed captioning
- SDI Video Sampling : 4:2:2
- SDI Audio Sampling : Television standard sample rate of 48 kHz and 24 bit
- SDI Color Precision : 4:2:2
- SDI Color Space : YUV
- SDI Auto Switching : Automatically detects SD, HD or 3G-SDI
Format Conversion
- Video Conversion : Convert any SD and HD input to 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
- Computer Scaling : Scale DVI resolutions 640×480, 800×600, 1024×768 to 525i59.94, 625i50,720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Software
- Internal Software Upgrade : Via included updater application
Operating Systems
- Mac 10.15 Catalina, Mac 11.1 Big Sur or later
- Windows 10 64-bit
Settings Control
Power Requirements
- Power Supply : +12V universal power supply included with international socket adapters for all countries. Cable tie point
- Power Consumption : 5W
- Operational Voltage Range : 6V to 36 vdc
Garansi produk: 3 Year Limited Manufacturer’s Warranty
