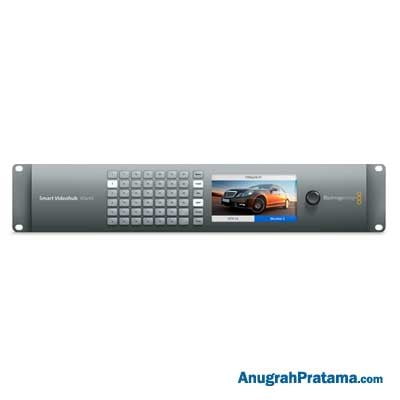

BLACKMAGIC DESIGN Smart Videohub 40×40

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN Smart Videohub 40×40

Spesifikasi:

Connections

• SDI Video Inputs : 40 x 10-bit SD-SDI, HD-SDI and 6G-SDI
• SDI Video Outputs : 40 x 10-bit SD-SDI, HD-SDI and 6G-SDI
• SDI Rates : DVB-ASI, 270Mb, 1.5G, 3G, 6G
• Video Input Re-Sync : None
• SDI Reclocking : On all SDI outputs, auto switching between standard definition, high definition or 6G-SDI video
• Reference Input : Tri-Sync or Black Burst
• Reference Output : Reference terminating loop output
• Control Panel Connection : Ethernet
• Serial Control Connection : DB-9 RS-422
• Multi Rate Support : Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD, SD video and DVB-ASI
• Updates : USB
• Router Control : 40 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet
• Router Configuration : Via front panel LCD or RJ45 Ethernet. USB for firmware updates and IP address setting only
• RS-422 Router Control : 1 x input for controlling router crosspoint switching

Standards

• SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, ITU-R BT.656 and ITU-R BT.601
• SDI Video Sampling : 4:2:2 and 4:4:4
• SDI Audio Sampling : Television standard sample rate of 48kHz and 24 bit
• SDI Color Precision : 10-bit 4:2:2 and 4:4:4
• SDI Color Space : YUV or RGB
• SDI Auto Switching : Automatically selects between SD-SDI, HD-SDI, 6G-SDI and DVB-ASI on each input so that each input can be running a different television standard
• SDI Metadata Support : Video payload identification ancillary data as per SMPTE 352M

Control

• Built in Control Panel : 40 buttons for local control of Videohub with 6 buttons and scroll wheel for menu control. 2.2 inch color display
• External Control Panel : Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control and Blackmagic Master Control hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol

Software

• Software Control : Router control included free for Windows and Mac
• Internal Software Upgrade : Via included updater application

Display

• Built in 5 inch LCD for video and menu settings

Operating Systems

• Mac 10.15 Catalina, Mac 11.1 Big Sur or later
• Windows 10, 64-bit

Power Requirements

• Power Fail Protection : Crosspoint connections preserved and restored instantly at power on
• Power Supply : 2x Internal 100 – 240V AC. IEC power cables required
• Power Consumption : 58 Watts

Garansi produk: 3 Year Limited Manufacturer’s Warranty, and 12 Month Warranty on the front panel
