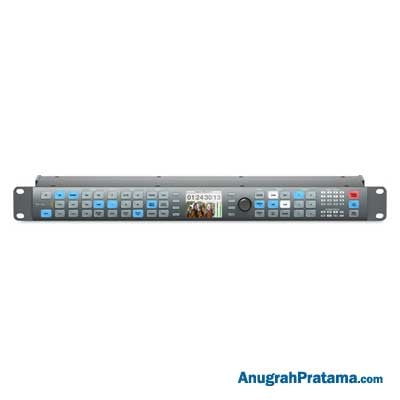

BLACKMAGIC DESIGN Teranex AV

Rp46.039.500

Dual SD/HD/3G/6G/12G-SDI I/O | Quad-Link SDI Output | HDMI 2.0 Input and Output | Supports SD, HD, 2K, and UHD 4K | Automatic Input Signal Detection | Redundant SDI Input & Looped SDI Output

Stok habis

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN Teranex AV

Spesifikasi:

Connections

  • SDI Video Inputs : 1x BNC (IN A) ? 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching ; 1x BNC (IN B) ? 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as 2nd input or for dual link input for 4:2:2 3G or 6G Ultra HD
  • SDI Video Input Loops : 1x BNC (IN A Loop) ? Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching ; 1x BNC (IN B Loop) ? Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.
  • SDI Video Outputs : 1x BNC (OUT A) ? 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching ; 1x BNC (OUT B) ? 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as dual link output for 4:2:2 3G or 6G Ultra HD.
  • Quad SDI Video Outputs : 4x BNC (Channels A, B, C, D) – 10-bit 3G-SDI Quad Link or Quad HD Split for Ultra HD p50/59.94/60; 10-bit 1.5G-SDI Quad HD Split for Ultra HD p23/24/25/29/30. For other output formats, these connectors will supply four replicated SDI outputs.
  • HDMI Video Inputs : 1x HDMI 2.0 type A connector. YUV or RGB, auto switching
  • HDMI Video Loop Inputs : 1x HDMI 2.0 type A connector. Active Input loop
  • HDMI Video Outputs : 1x HDMI 2.0 type A connector. YUV or RGB, user selectable
  • SDI Audio Inputs : 16 channels in SD, HD, 3G HD, 2K and Ultra HD
  • SDI Audio Outputs : 16 channels in SD, HD, 3G HD, 2K and Ultra HD
  • HDMI Audio Inputs : 8 channels in SD, HD, 3G HD, 2K and Ultra HD
  • HDMI Audio Outputs : 8 channels in SD, HD, 3G HD, 2K and Ultra HD
  • Optical Fiber Connection (optional) : 1x SMPTE optical fiber SFP socket
  • Optical Fiber Video Inputs : 1x 10?bit SD, HD, 3G HD, 2K, Ultra HD auto switching
  • Optical Fiber Video Outputs : 1x 10?bit SD, HD, 3G HD, 2K, Ultra HD auto switching
  • Optical Fiber Audio Inputs : 16 channels in SD, HD, 3G HD, 2K and Ultra HD
  • Optical Fiber Audio Outputs : 16 channels in SD, HD, 3G HD, 2K and Ultra HD
  • Analog Audio Inputs : 2x XLR – 2 channels professional balanced analog audio (XLRs are shared with AES/EBU inputs) ; 2x RCA – stereo unbalanced analog audio on RCA connectors for consumer equipment
  • AES/EBU Digital Audio Inputs : 2x XLR – 2 pairs (4 channels) professional 110O balanced digital audio (XLRs are shared with analog inputs)
  • Dolby Support Built In : Dolby AC-3 pass through in all conversions. Dolby? E pass through except during video frame rate conversions
  • Timecode Inputs : Support for VITC/ATC. No support for LTC
  • Timecode Outputs : Support for VITC/ATC. No support for LTC
  • Multi Rate Support : SDI connections are switchable between standard definition, high definition and Ultra HD. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 2K SDI, 3G HD, 6G and 12G Ultra HD
  • Reference Input : 1x BNC – Black Burst in SD or Tri-level sync in HD
  • Reference Output : 1x BNC – Internal reference generator providing blackburst or tri-level sync output at the current output frame rate
  • Computer Interface : 1x USB type C port for software updates. 1 x RJ45 Gigabit Ethernet for remote control and configuration
  • Processor Interface : Illuminated pushbuttons, status LEDs and LCD with easy to use onscreen menus

Standards

  • SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M
  • SDI Metadata Support : VITC/ATC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTE 334M
  • Audio Sampling : Television standard sample rate of 48kHz and 24-bit HD, 20-bit SD
  • Video Sampling : 4:2:2 SDI
  • Color Precision : 10-bit
  • Color Space : REC 601, REC 709
  • SDI Video Standards : 525 NTSC, 625 PAL, 720HD, 1080HD, 2K DCI and Ultra HD 3840 x 2160 switchable
  • HDMI Color Precision : 4:2:2 10-bit
  • Copy Protection : HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content

Processing

  • Aspect Ratio Conversion : Real time variable and fixed aspect ratio conversions
  • Real Time Video Processing : Includes noise reduction, cadence detection with insertion/removal, scene cut detection, color correction and proc amp control
  • Low Latency Processing : Real time processing with 2 frame latency, available for select format conversions
  • Format Conversion : Real time up conversion, down conversion , cross conversion and SD/HD/Ultra HD standards conversion
  • Colorspace Conversion : Hardware based real time
  • Still Store : Capture a video frame into non-volatile memory from the current input signal or freeze frame buffer
  • Freeze Frame : Temporarily freeze incoming live video
  • Test Patterns : SMPTE 75% Bars; full field color bars 75%; convergence grid; multiburst ; black with selectable audio tones and selectable horizontal pattern motion
  • Output Switching : Output may be switched between the input video, internal black, user still frame or a freeze frame from the input video. The transition rate between output choices has a range of 0 to 5 seconds. A transition forces a dissolve through black

Software

  • Software Control : Teranex Setup software control application included free of charge for changing settings via Windows 8.1, Windows 10 and Mac
  • Internal Software Upgrade : Via USB type C using the included Teranex Setup application

Operating Systems

  • Mac 10.15 Catalina, Mac 11.1 Big Sur or later
  • Windows 10 64-bit

Power Requirements

  • Power Supply : 1x built-in international AC power supply with IEC C14 inlet. IEC power cable required. 100-240V, 50-60Hz
  • Typical Power Consumption : 42W

Garansi produk: 12 Month Limited Manufacturer’s Warranty

Informasi Tambahan

Berat 2 kg

Brand

BLACKMAGIC DESIGN
