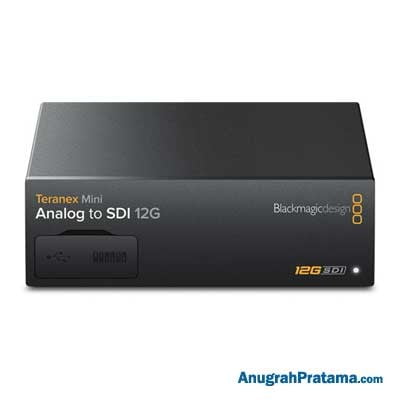

Anugrahpratama.com Jual BLACKMAGIC DESIGN Teranex Mini Analog to SDI 12G
Spesifikasi:
Connections
- SDI Video Outputs : 2x 12G-SDI outputs
- Analog Video Inputs : Composite, Y/C or Component
- Analog Audio Inputs : 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input
- Digital Audio Inputs : 4 channels professional 110 ohm balanced digital audio via XLR connectors. Right XLR can be configured for timecode input
- Multi Rate Support : SDI output switchable between HD for composite and S-Video and Ultra HD for component HD
- Updates and Configuration : USB or Ethernet
- Reclocking : Yes
Standards
- SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
- SDI Video Rates : SDI video connections are switchable between standard definition and high definition
- SDI Video Sampling : 4:2:2 and 4:4:4
- SDI Audio Sampling : Television standard sample rate of 48 kHz and 24-bit
- SDI Color Precision : YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K
- SDI Color Space : REC 601, REC 709
- Analog Color Space : REC 601, REC 709
- Analog Color Precision : 4:2:2
Software
- Software Control : Mac and Windows software upgrade via USB or Ethernet
- Internal Software Upgrade : Via included updater application
Operating Systems
- Mac 10.15 Catalina, Mac 11.1 Big Sur or later
- Windows 10 64-bit
Settings Control
- Basic Settings Control : Mini Switches, USB and Ethernet via free software utility
- Optional Front Panel Control : Front mounted Smart Panel with LCD, rotary knob and six settings buttons
Power Requirements
- Power Supply : 1x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 – 240V AC Input
- Power Over Ethernet : Can be powered via 48V DC using PoE+ (power over ethernet)
- Power Consumption : 16W
- Operational Voltage Range : 100 – 240V AC
Garansi produk: 3 year Limited Manufacturer? Warranty
