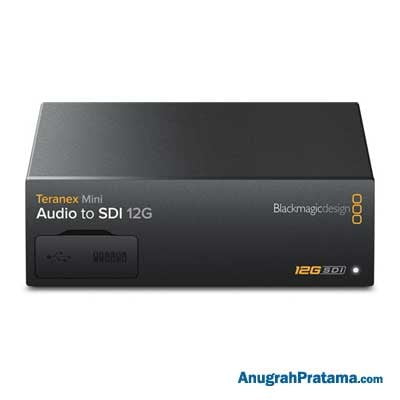

BLACKMAGIC DESIGN Teranex Mini Audio to SDI 12G

Rp14.812.200

Advanced High-Data Rate Embedder | Embed Audio into up to 4K SDI Signals | Embed via XLR, AES/EBU, RCA, or S/PDIF | 12G-SDI Input and Output | Supports up to Full 4K DCI 4096x2160p

Stok habis

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN Teranex Mini Audio to SDI 12G

Spesifikasi:

Connections

  • SDI Video Inputs : 1x 12G-SDI SD/HD/2K/4K auto switching
  • SDI Video Outputs : 1x 12G-SDI output
  • Analog Audio Inputs : 2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode input
  • Digital Audio Inputs : 4 channels professional 110 ohm balanced digital audio via XLR connectors. Right XLR can be configured for timecode input
  • Embedded Audio Support : 16 channels
  • Optical Audio Input : S/PDIF Signal with TOSLINK Connector
  • Multi Rate Support : Automatic switching between SD/HD/2K and 4K
  • Updates and Configuration : USB or Ethernet
  • Reclocking : Yes

Standards

  • SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
  • SDI Video Rates : SDI video connections are auto switching between standard definition SDI, 1.5G-SDI, 3G-SDI, 6G-SDI and 12G-SDI
  • SDI Video Sampling : 4:2:2 and 4:4:4
  • SDI Audio Sampling : Television standard sample rate of 48 kHz and 24-bit
  • SDI Auto Switching : Automatically selects between SD, HD, 3G, 6G and 12G-SDI
  • SDI Color Precision : YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K
  • SDI Color Space : REC 601, REC 709

Software

  • Software Control : Mac and Windows software upgrade via USB or Ethernet
  • Internal Software Upgrade : Via included updater application

Operating Systems

  • Mac 10.15 Catalina, Mac 11.1 Big Sur or later
  • Windows 10 64-bit

Settings Control

  • Basic Settings Control : Mini Switches, USB and Ethernet via free software utility
  • Optional Front Panel Control : Front mounted Smart Panel with LCD, rotary knob and six settings buttons

Power Requirements

  • Power Supply : 1x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 – 240V AC Input
  • Power Over Ethernet : Can be powered via 48V DC using PoE+ (power over ethernet)
  • Power Consumption : 16W
  • Operational Voltage Range : 100 – 240V AC

Garansi produk: 3 year Limited Manufacturer? Warranty

Informasi Tambahan

Berat 1 kg

Brand

BLACKMAGIC DESIGN
