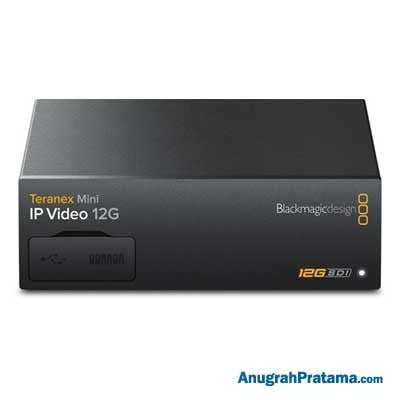

BLACKMAGIC DESIGN Teranex Mini IP Video 12G

Deskripsi

Anugrahpratama.com Jual BLACKMAGIC DESIGN Teranex Mini IP Video 12G

Spesifikasi:

Connections

• SDI Video Inputs : 1x 10-bit HD-SDI, 6G-SDI and 12G-SDI
• SDI Video Outputs : 2x 10-bit HD-SDI, 6G-SDI and 12G-SDI
• Ethernet : Gigabit ethernet supports 3G-SDI up to 1080p60 using TICO encoding/decoding. Optional 10G optical data ethernet supporting Ultra HD up to 2160p60 using TICO encoding/decoding
• Multi Rate Support : Auto detection of HD-SDI, 6G-SDI or 12G-SDI
• Updates : USB 2.0 high speed (480Mb/s) interface or via Ethernet
• Configuration : Ethernet or USB 2.0 for firmware updates and IP address setting
• Reclocking : On all SDI outputs, auto switching between high definition, 6G-SDI or 12G-SDI video

Standards

• SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, ITU-R BT.656 and ITU-R BT.601
• SDI Video Rates : SDI video input is switchable between high definition, ultra high definition and 4K. SDI switches between 1.5 Gb/s HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI
• SDI Video Sampling : 4:2:2 plus 4:4:4 up to 4K DCI 30p
• SDI Audio Sampling : Television standard sample rate of 48 kHz and 24-bit
• SDI Color Precision : 10-bit 4:2:2 and 4:4:4
• SDI Color Space : YUV or RGB for inputs, YUV for SDI outputs
• SDI Auto Switching : Automatically selects between HD-SDI, 6G-SDI and 12G-SDI
• SDI Metadata Support : Video payload identification ancillary data as per SMPTE 352M

Display

• Optional Teranex Mini Smart Panel with 2.2 inch LCD for menu settings

Software

• Software Control : Blackmagic IP Video Setup and Videohub Router Control Software included on SD card for Windows and Mac
• Internal Software Upgrade : Via included updater application

Operating Systems

• Mac 10.15 Catalina, Mac 11.1 Big Sur or later
• Windows 10 64-bit

Settings Control

• Built in switches, setup software utility, or optional front mounted Teranex Mini Smart Panel with LCD, rotary knob and six settings buttons

Power Requirements

• Power Supply : IEC power cable required. 100 – 240V AC input
• Power Over Ethernet : Can be powered via 48V DC using PoE+ (power over ethernet)
• Power Consumption : 16W
• Power Fail Protection : Settings preserved and restored instantly at power on

Garansi produk: 3 year Limited Manufacturer? Warranty
